Installing Rear Panel (Moulding)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit rear panel on rear apron and engage clip connections fully.

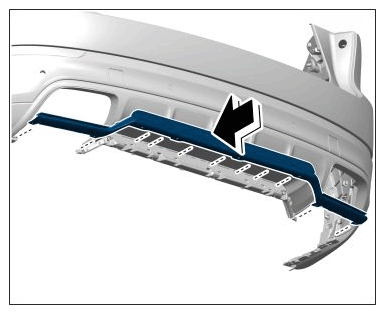

    G15238493Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear panel

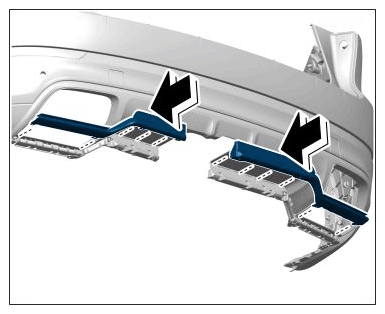

    G15238494Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear panel (2-piece, USA)
