Disassembling Rear Apron

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove wire harness for rear apron.
> WM, 975919 - REMOVING AND INSTALLING WIRE HARNESS FOR REAR APRON
Remove sensors for ParkAssist.
> WM, 917519 REMOVING AND INSTALLING PARKASSIST SENSOR
Remove reflector.
> WM, 943819 REMOVING AND INSTALLING REFLECTOR
Not for centre exhaust system:
Remove rear skirt.

> 636819 REMOVING AND INSTALLING REAR SKIRT
Remove rear panel.
> 635619 REMOVING AND INSTALLING REAR PANEL
Remove cover on towing lug -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

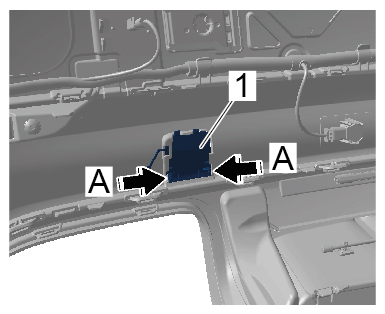

Cover for towing lug
1. 6.1 Release locking lugs -arrow A- .
2. 6.2 Unclip cover on towing lug -1- and release safety hook.
3. 6.3 Remove cover on towing lug -1- .
