Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear underbody covers at the sides.

    >  WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

  2. Only vehicles without Sport Design  : Remove rear wheel covers.

    > 664519 REMOVING AND INSTALLING REAR WHEEL COVER

  3. Only for vehicles with Sport Design  : Remove rear wheel cover (Sport Design).

    > 664555 REPLACING REAR WHEEL COVER (SPORT DESIGN)

  4. Remove side trim panel for rear luggage compartment at the left.

    > 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT

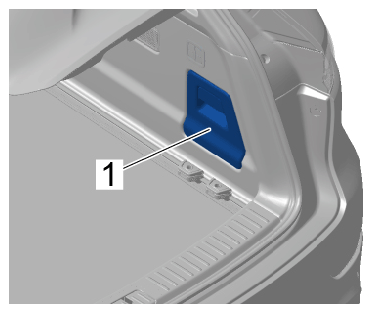

  5. Open side trim panel flap -1-  in the rear luggage compartment at the right and remove it.
    G15238473Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side flap
