Removing (Stainless Steel) Skid Plate
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Bend up sheetmetal brackets by approx. 90°.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

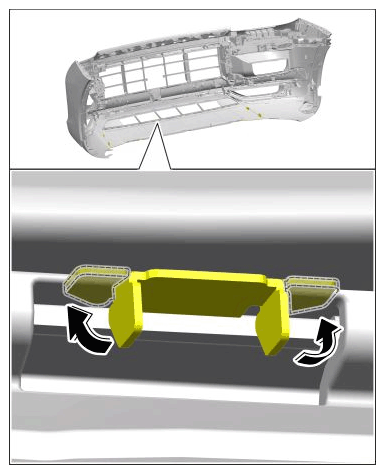

Front sheetmetal brackets
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

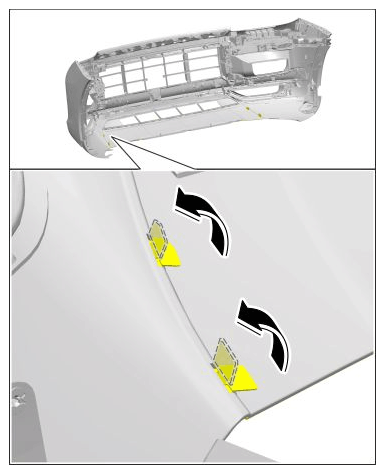

Sheetmetal brackets at the sides
- Turn the skid plate outward -arrow A-
and remove it -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

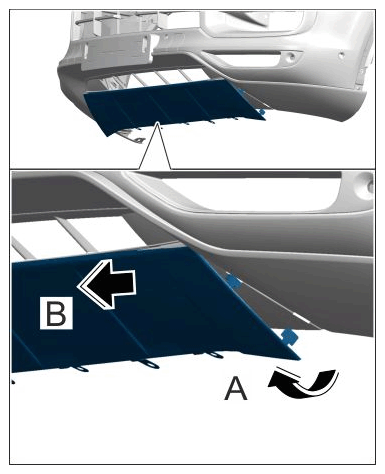

Skid plate
