Installing (Stainless Steel) Skid Plate
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The help of another person is required.

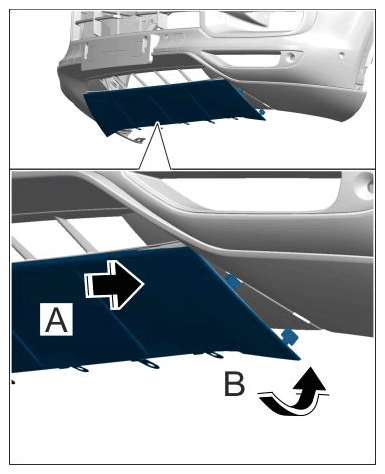

- Fit skid plate on the front of the front apron -arrow A-
and position it correctly -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Skid plate
- Bend sheetmetal brackets over by approx. 90°.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

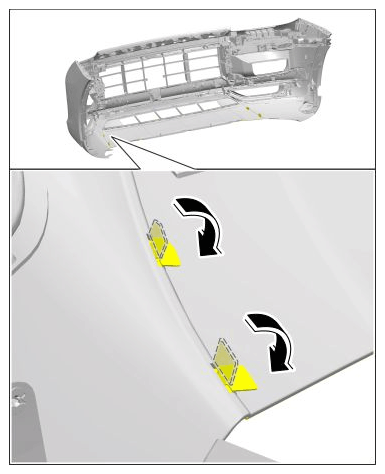

Front sheetmetal brackets
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

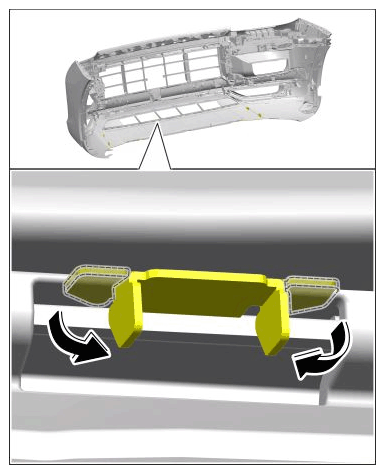

Sheetmetal brackets at the sides
