Assembling Front Apron

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The bonding surfaces must be clean and free of grease.

Information

Temperature

A processing temperature of between 20°C and 25°C applies to the surrounding area and materials.

For ParkAssist (I-no. 7X5):
Clean bonding surface -1- with isopropanol.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding surface

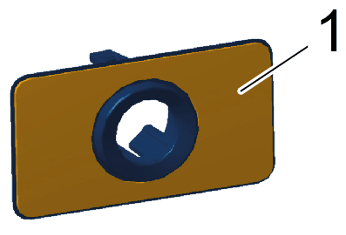

Pull protective film -1- off the adhesive tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protective film

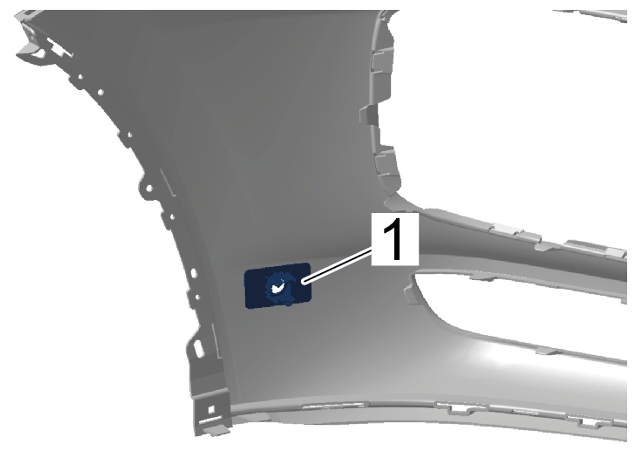

Affix the holders for the ParkAssist parking sensors -1- on the contour of the front apron mounting and press on evenly using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ParkAssist parking sensor holder
The remaining installation steps are performed in reverse order.
