Removing Front Apron

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

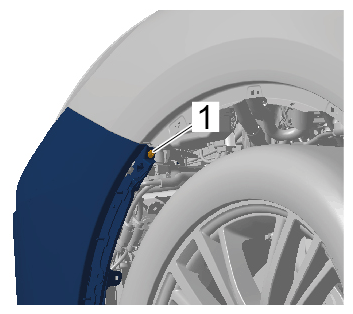

  1. Unscrew fastening screw -1-  on the wing.
    G15238441Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw

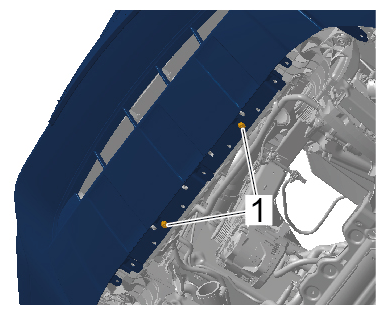

  2. Unscrew fastening screws -1-  .
    G15238442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

    Information

    The number of electric plug connections can vary depending on equipment.

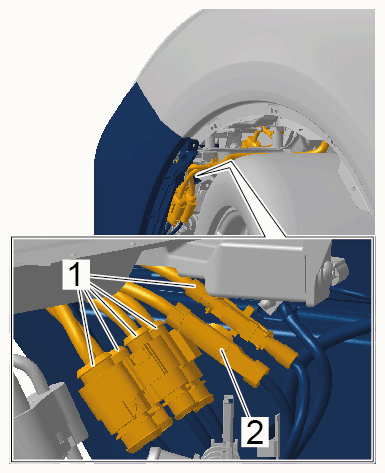

  3. Release and disconnect electric plug connections -1-  and water hose -2-  from wire harness for front apron.
    G15238443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

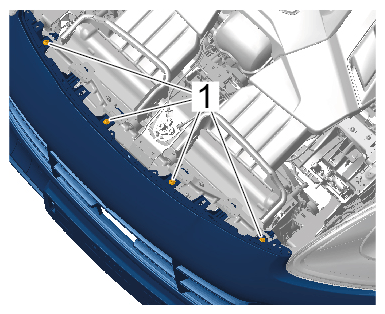

  4. Unscrew front fastening screws -1-  at the top.
    G15238444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws at the top

    Information

    The help of another person is required.

  5. Remove front apron.
