Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen ground strap for battery.

    >  WM, 978509 - LOOSENING AND SECURING GROUND STRAP FOR BATTERY

  2. Remove the cover on lock carrier.

    >  WM, 703919 REMOVING AND INSTALLING COVER FOR FRONT LOCK SUPPORT

  3. Vehicles without power unit guard  Loosen front cover in the area of the front bumper and air duct brake.

    >  WM, 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY

  4. Vehicles with power unit guard  Remove power unit guard.

    > Refer to appropriate Engine article

  5. Remove wheel housing liner front in the front bumper area.

    >  WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  6. Only without Sport Design:  Remove front wheel covers.

    >  WM, 661919 REMOVING AND INSTALLING FRONT WHEEL COVER

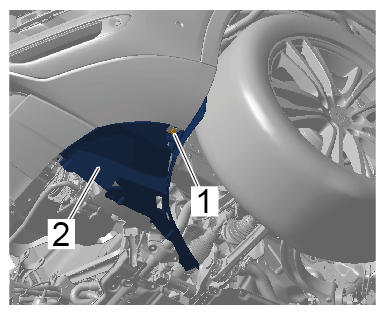

  7. Unscrew the fastening screws -1-  and remove the brake -2-  air duct.
    G15238440Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws
