Removing Front Bumper

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTIFICATION

Different tightening torque for screwing self-tapping screws into a new or existing, old thread.

Incorrectly screwed joints
Risk of damage to screw thread
→ Observe different tightening torques.

→ When screwing into an already shaped, old thread, first screw in screws several turns by hand, then screw in completely using a tool.

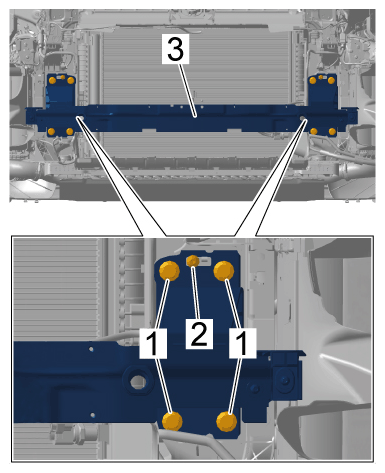

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Unscrew pre-assembly screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pre-assembly screws
Remove front bumper -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front bumper
