Installing Front Bumper

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order. Pay particular attention to the following:

Tighten pre-assembly screws to > Tightening torque 8 Nm (6 ftlb.) .
Tighten screws to > Tightening torque 60 Nm (44 ftlb.) and observe the tightening sequence > Tightening sequence .

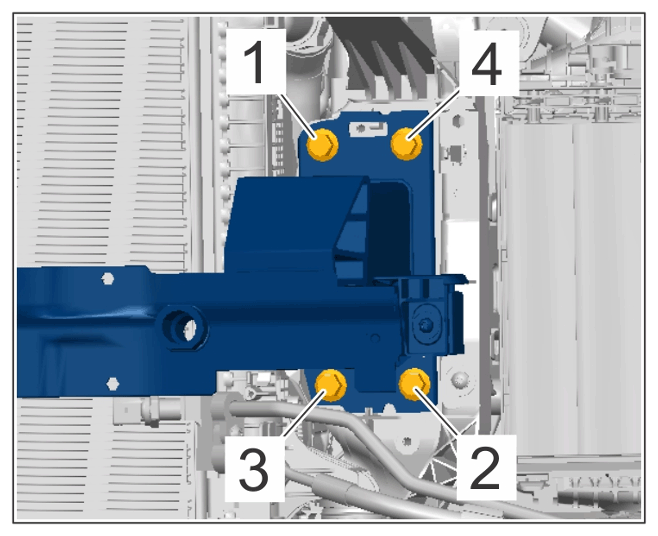

Fig 1: Front Bumper Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence
