Removing seat position sensor

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

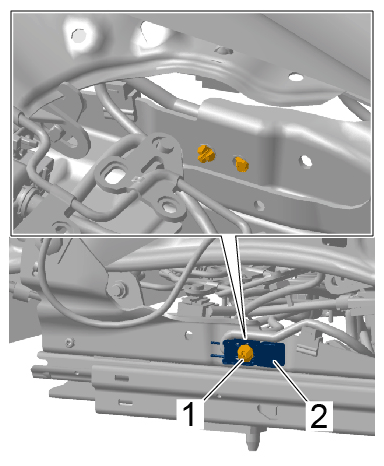

Unscrew fastening screw -1- from seat position sensor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw
Remove seat position sensor -2- from the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat position sensor

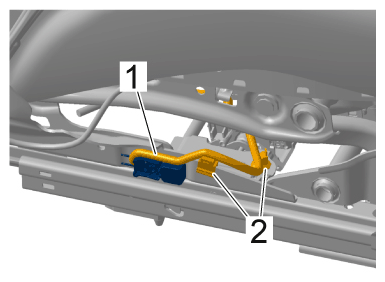

Unclip electric wire harness -1- with line bracket -2- from the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

Information

Choose a place for the joint where there is enough space for connecting all the individual lines.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.
Disconnect seat position sensor from wire harness.
