Installing seat position sensor

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the > VAS 1978/35-20 - Release Tool Set.

Crimping samples must be prepared before beginning work.

Crimp seat position sensor onto the wire harness. > VAS 1978/35-20 - Release tool set
Insulate crimp points with shrink-fit hose.
Wrap fabric tape around the wire harness in the shrink-fit hose area.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
  1. Always use new screws or nuts following removal.
  2. Comply with instructions for repairs.
  3. Observe specified tightening torques.
  4. Carry out a visual inspection of parts used.
Position new fastening screw with seat position sensor and tighten to > Tightening torque 1.1 Nm (0.6 ftlb.) .

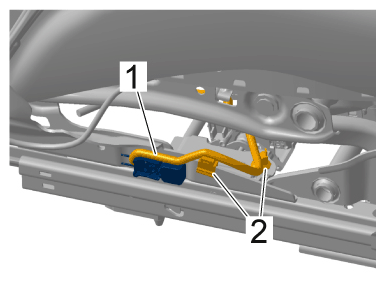

Clip line bracket -2- with electric wire harness -1- onto the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
