Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening nuts for knee airbag on passenger side Item 1 Tightening torque 8 Nm (6 ftlb.)

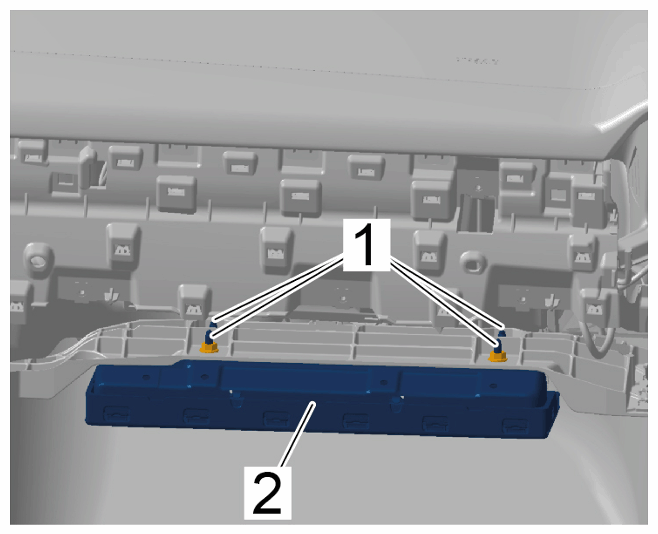

G15239170Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
