Installing Ignition Module For Front Lid (Pedestrian Protection)

Information

If a new component (e.g. sensor, airbag control unit, airbag unit) of the airbag system has to be installed, the new component will be supplied with a barcode sticker (tear-off label).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

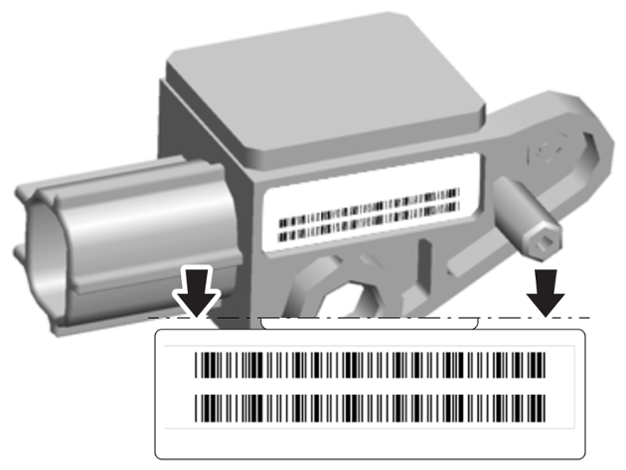

Tear-off label shown on airbag sensor for example

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

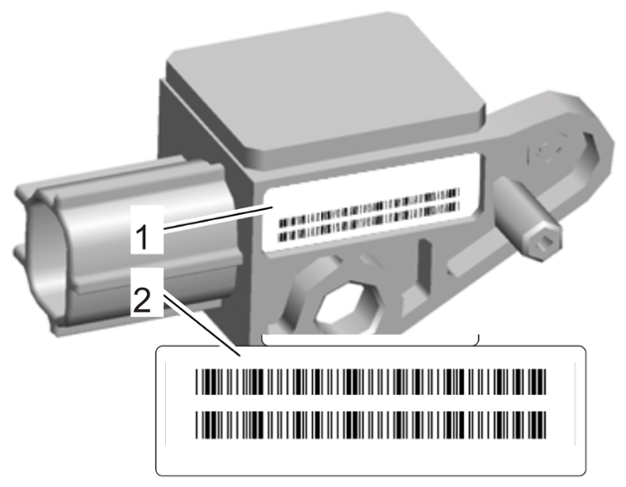

Tear-off label

• Tear off the tear-off label -2-  on the new component -1-  and stick it under the heading Proof of airbag system check/component replacement in the Warranty and Maintenance booklet.
• The replacement date and mileage must be documented and the booklet must be stamped with the dealer's stamp.

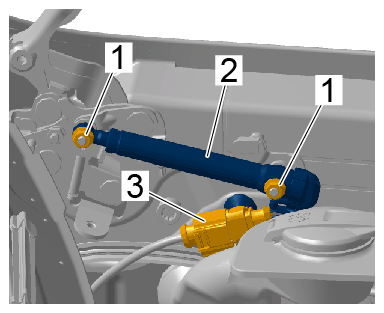

1. Fit ignition module for front lid (pedestrian protection) -1-  on the front lid hinge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ignition module for front lid (pedestrian protection)

   Information

   Risk of damage!

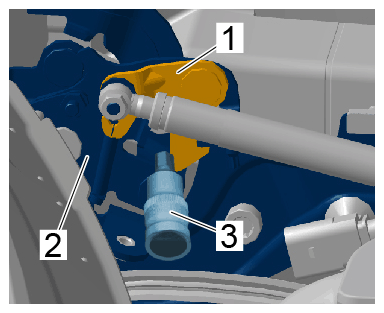

   The hook -1-  on the front lid hinge -2- must  be countered using a suitable tool (e.g. 10 mm hexagon socket) -3-  .

   If the hook -1-  is moved, pedestrian impact protection will be triggered and the front lid hinge -2- must  be replaced together with the ignition module for the front lid (pedestrian protection).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hook

2. Counter at the hook -1-  on the front lid hinge using a suitable tool (e.g. 10 mm hexagon socket) -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hook

3. Screw on fastening nuts -1-  and tighten them > Tightening torque 6.5 Nm (4.75 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts

4. Connect electric plug connection -3-  and clip it in at the front lid hinge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection
