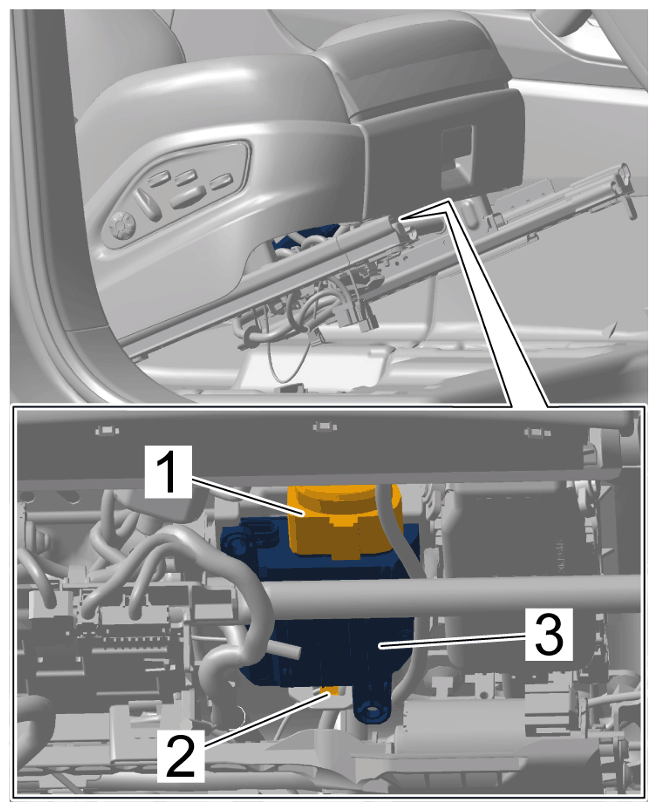

Removing Occupant Detection Control Unit
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
If components of the seat occupancy detection system (only on vehicles for C02 - USA and C36 - Canada) must be replaced, the padding with affixed mat for the seat occupancy detection system -1- and the control unit for seat occupancy detection -2- must always be replaced as a complete unit since they are paired during manufacture.
Spare parts are grouped in a repair kit.

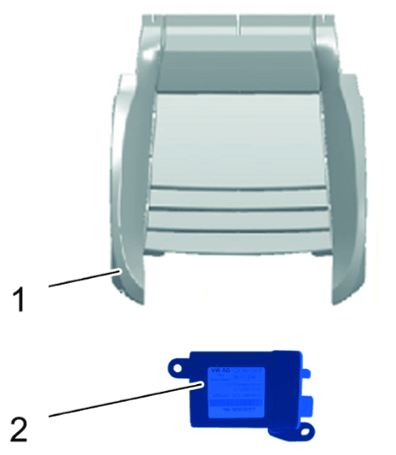

Contents of repair kit for seat occupancy detection system
| -1- | Padding with affixed mat for seat occupancy detection system |
| -2- | Control unit for seat occupancy detection |
A mixed installation is not permitted .
Do not detach the mat for the seat occupancy detection system from the foam part.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.
