Installing Pedestrian Protection Sensor
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
If a new component (e.g. sensor, airbag control unit, airbag unit) of the airbag system has to be installed, the new component will be supplied with a barcode sticker (tear-off label).

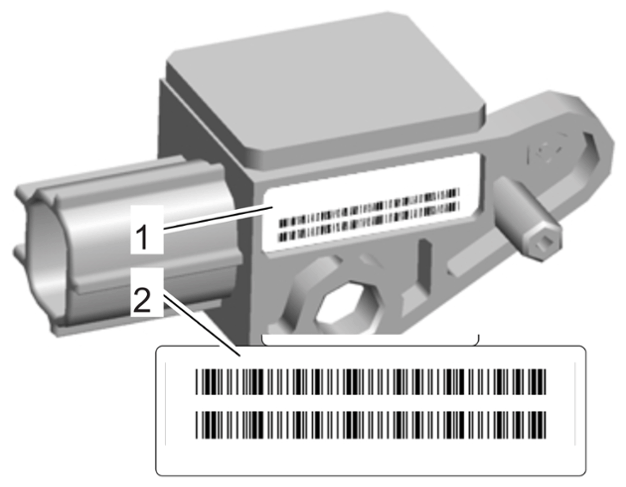

Tear-off label shown on airbag sensor for example
Tear-off label
- Tear off the tear-off label -2- on the new component -1- and stick it under the heading Proof of airbag system check/component replacement in the Warranty and Maintenance booklet.
- The replacement date and mileage must be documented and the booklet must be stamped with the dealer's stamp.
Information
To prevent malfunctions, make sure not to kink or pinch the hose during removal and installation.
- Installation is performed in reverse order. Pay particular attention to the following:
Tighten fastening screws to > Tightening torque 6 Nm (4.5 ftlb.) .
