Removing head airbag

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Improper handling of airbag units
  • Triggering of airbag unit.
  • System faults can occur.
    1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).
    2. A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.
    3. Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.
    4. Wait 1 minute after disconnecting the battery.
    5. Only pull off connector on the triggering unit after the waiting time has elapsed.
    6. Make sure that no foreign objects are located in front of the airbag unit during installation.
    7. Replace damaged parts during removal.
    8. Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.
    9. Do not place any objects on the airbag units.
    10. If removed for an extended period, the airbag units must be stored in a safe place.
    11. Airbag units must not come into contact with grease, oil, detergents, liquids or similar substances.
    12. Do not expose airbag units to temperatures above 90°.
    13. Do not remove the short-circuit spring on the plug contacts.
    14. Triggering and preparations may only be carried out by skilled staff, supervised by a second responsible person.
    15. Before disposal, the airbag unit must be rendered harmless by triggering it electrically while observing all precautionary measures, thereby preventing it from being used incorrectly.
WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque
    1. Always use new screws or nuts following removal.
    2. Comply with instructions for repairs.
    3. Observe specified tightening torques.
    4. Carry out a visual inspection of parts used.

Information

Shown on driver's side; the steps are identical for the passenger's side.

  1. Wait 1 minute after disconnecting the battery.

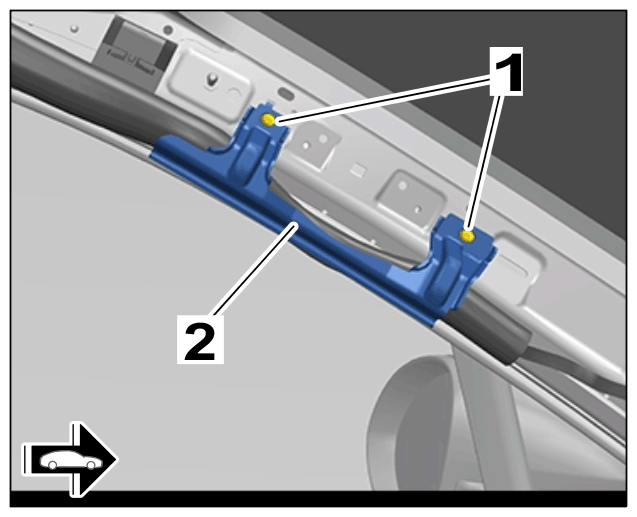

  2. Unscrew fastening screws -1-  and remove deformation element -2-  .
    G15239127Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Deformation element

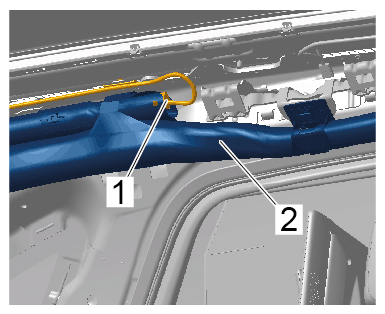

  3. Release and disconnect electric plug connection -1-  on head airbag -2-  .
    G15239128Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on head airbag

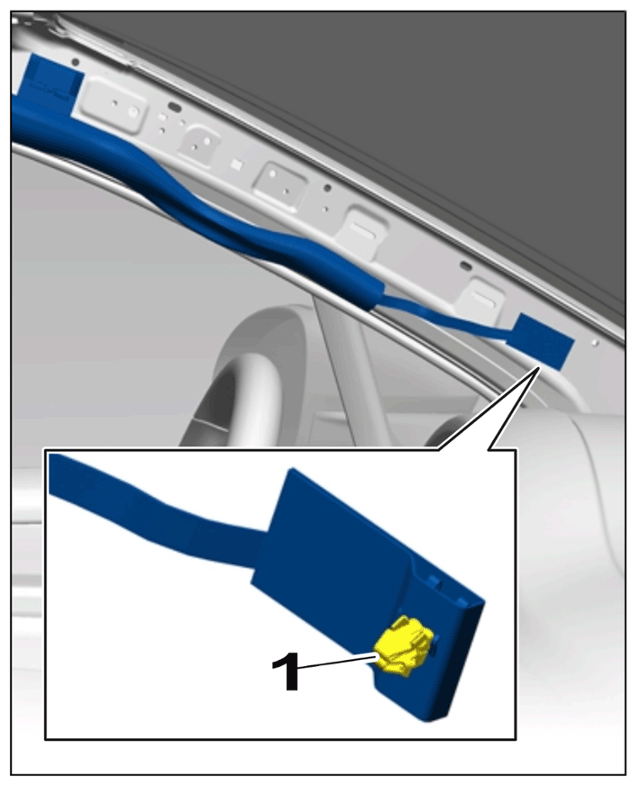

  4. Unclip fastening for rebound strap for front head airbag -1-  .
    G15239129Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening for rebound strap for front head airbag

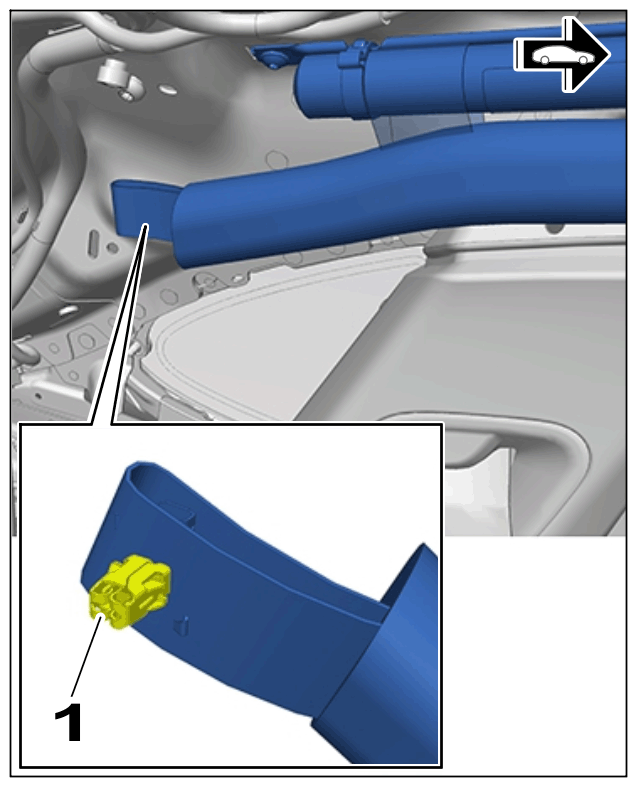

  5. Unclip fastening for rebound strap for rear head airbag -1-  .
    G15239130Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening for rebound strap for rear head airbag

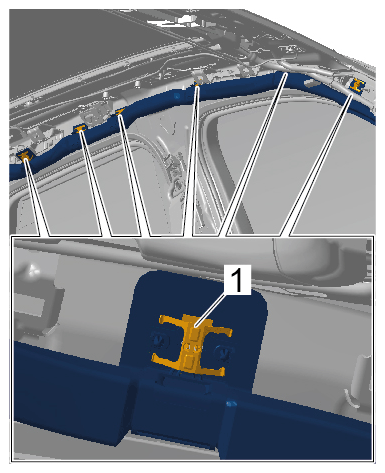

  6. Press clips -1-  together using pointed-nose pliers and unclip them.
    G15239131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clamps on head airbag

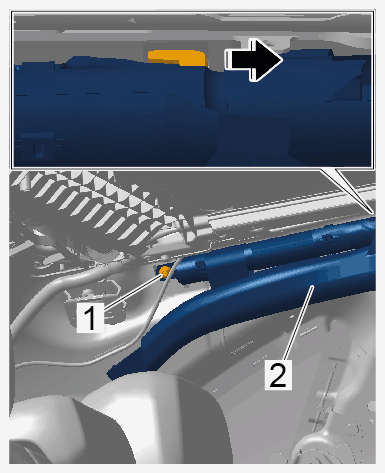

  7. Unscrew fastening screw -1-  and guide head airbag -2-  out of the bracket -Arrow-  .
    G15239132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw on head airbag
