Remove Rear Side Airbag

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Removing rear side airbag

WARNING: Improper handling of airbag units

Triggering of airbag unit.
System faults can occur.
1. Remove ignition key or remote control (hand-held transmitter) and keep it outside of the transmission range.
2. External power supply must be de-energized.
3. Disconnect the battery and isolate the ground strap so that all contact with a ground carrier is avoided.
4. Wait 1 minute after disconnecting the battery.
5. Only pull off connector on the triggering unit after the waiting time has elapsed.
6. Keep space in front of the airbag unit free.
7. Replace damaged parts.
8. Always set airbag units down with the blow-out opening facing upwards.
9. Do not place any objects on the airbag units.
10. Store airbag units in a safe place.
11. Avoid contact with grease, oil, detergents, liquids or similar substances.
12. Store airbag units in a cool place. Maximum temperature: 90°C.

Information

Dispose of replaced and non-ignited airbag and seat-belt pretensioner units in accordance with local legal requirements and transport regulations.

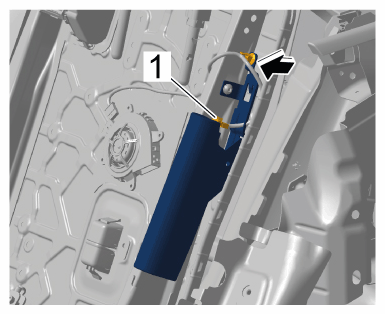

Release electric plug connection -1- , disconnect it and unclip electric line -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

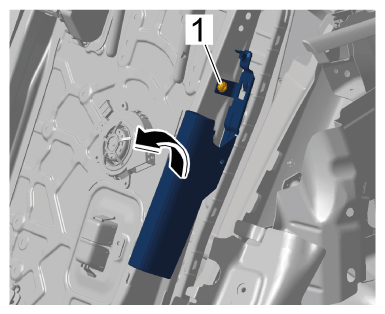

Unscrew fastening screw -1- and disengage rear side airbag -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear side airbag
