Removing front pressure sensor

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

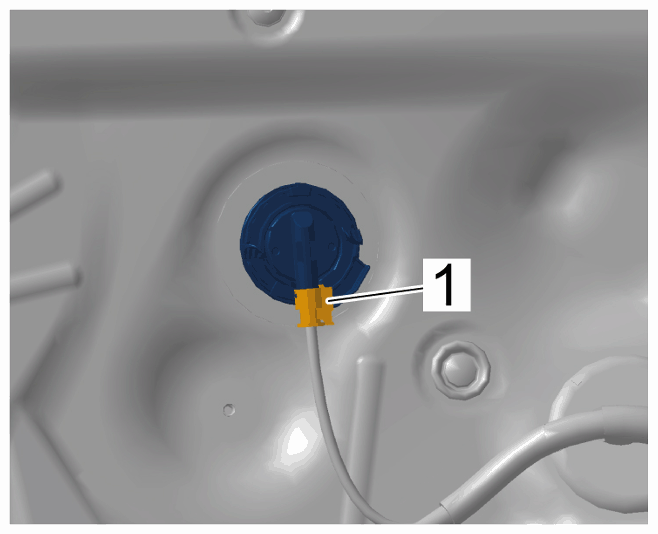

Release and disconnect electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

Information

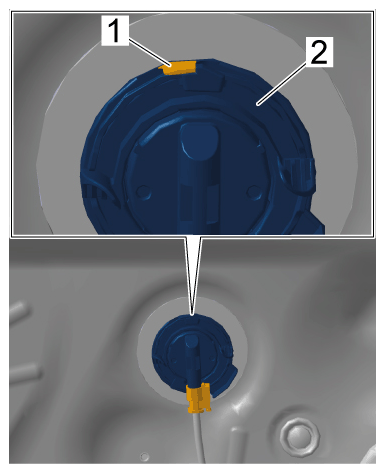

Release locking mechanism -1- carefully using a suitable tool and turn the pressure sensor -2- anti-clockwise.

If the locking lug -1- , the pressure sensor -2- or the seal on the pressure sensor -2- is damaged, the pressure sensor must be replaced (-2- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism on pressure sensor

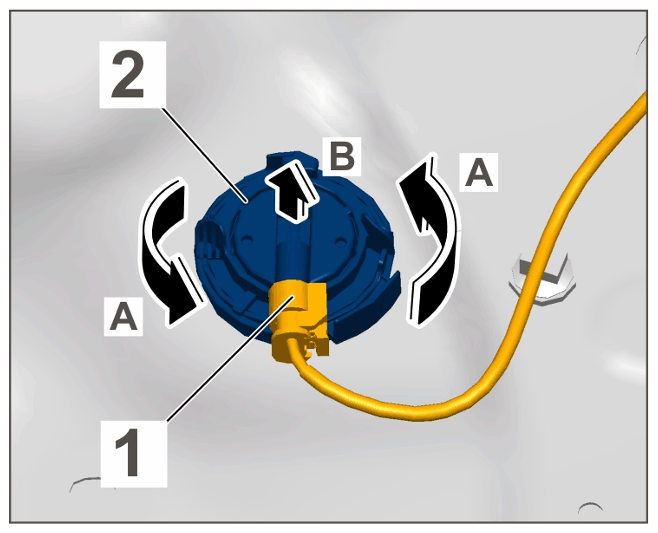

Turn front pressure sensor -2- anti-clockwise -arrows A- and remove front pressure sensor -2- (-arrow B- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front pressure sensor
