Subsequent Work
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

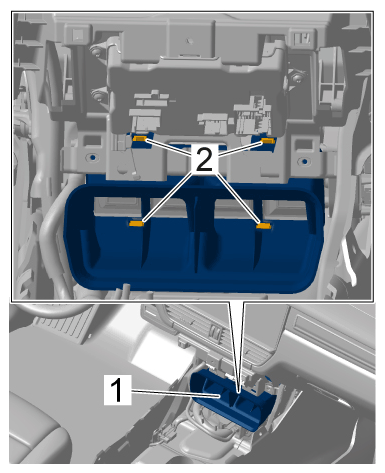

- Clip in air duct -1-
(-2-
).
Air duct
- For 2-zone air conditioning:
Install centre console.
- For 4-zone air conditioning:
Install additional air conditioner.
> WM, 881019 REMOVING AND INSTALLING ADDITIONAL AIR CONDITIONER / WM, 881019 REMOVING AND INSTALLING ADDITIONAL AIR CONDITIONER (BOOSTER)
- Connect ground strap for battery.
> WM, 978509 - LOOSENING AND SECURING GROUND STRAP FOR BATTERY
- When replacing the airbag triggering unit:
Program airbag triggering unit.
