Remove Airbag Triggering Unit

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Removing airbag triggering unit

WARNING: Improper handling of airbag units

Triggering of airbag unit.
System faults can occur.
1. Remove ignition key or remote control (hand-held transmitter) and keep it outside of the transmission range.
2. External power supply must be de-energized.
3. Disconnect the battery and isolate the ground strap so that all contact with a ground carrier is avoided.
4. Wait 1 minute after disconnecting the battery.
5. Only pull off connector on the triggering unit after the waiting time has elapsed.
6. Keep space in front of the airbag unit free.
7. Replace damaged parts.
8. Always set airbag units down with the blow-out opening facing upwards.
9. Do not place any objects on the airbag units.
10. Store airbag units in a safe place.
11. Avoid contact with grease, oil, detergents, liquids or similar substances.
12. Store airbag units in a cool place. Maximum temperature: 90°C.

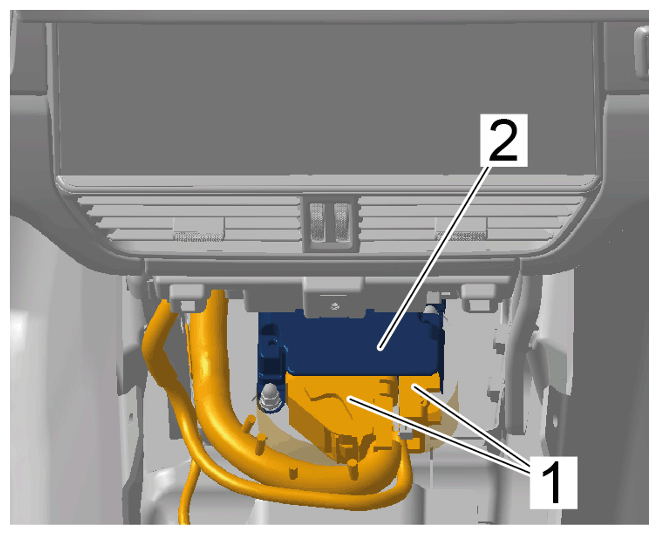

Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

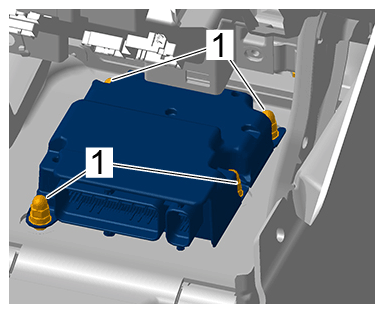

Screw off fastening nuts -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
Remove airbag triggering unit -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag triggering unit

Information

Transport the airbag triggering unit carefully. Do not shake the airbag triggering unit vigorously and do not drop it or let it fall.
