Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTIFICATION

Voltage peaks

Risk of damage to electrical load or to the control unit
1. Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
2. Switch off electrical loads before disconnecting or removing them.

Disconnect battery ground strap.
> WM, 978509 - LOOSENING AND SECURING GROUND STRAP FOR BATTERY
Wait 1 minute after disconnecting the battery.
For 4-zone air conditioning:
Remove additional air conditioner.

>WM, 881019 REMOVING AND INSTALLING ADDITIONAL AIR CONDITIONER / WM, 881019 REMOVING AND INSTALLING ADDITIONAL AIR CONDITIONER (BOOSTER)
For 2-zone air conditioning:
Remove centre console.

> 681719 REMOVING AND INSTALLING CENTRE CONSOLE

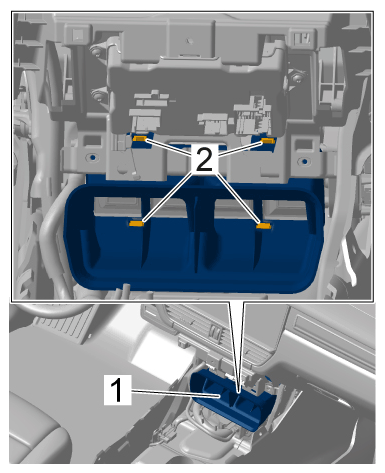

Unclip air duct -1- (-2- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air duct
