Removing Adjustment Fitting
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

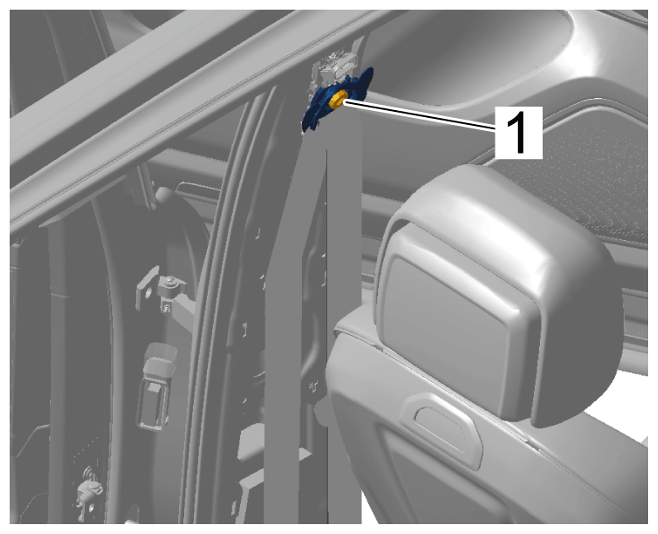

- Unscrew screw -1-
and set belt deflector aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Belt deflector screw

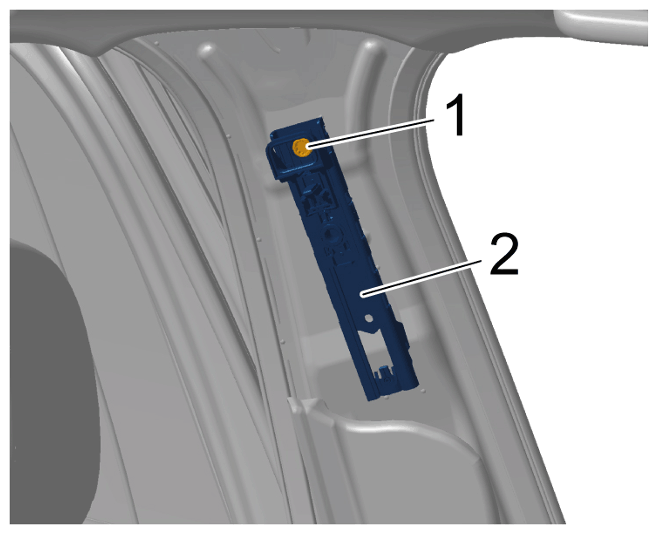

- Unscrew screw -1-
and remove adjustment fitting -2-
by pulling it up.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw for adjustment fitting
