Removing Outer Rear Seat-Belt Buckle

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque
    1. Always use new screws or nuts following removal.
    2. Comply with instructions for repairs.
    3. Observe specified tightening torques.
    4. Carry out a visual inspection of parts used.
  1. Unclip electric wire harness -1-  from the seat frame -Arrows-  .
    G15239078Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

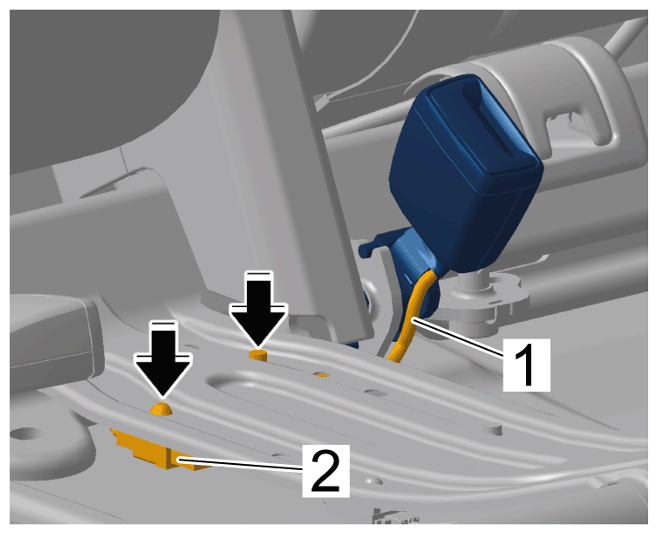

  2. Release and unplug electric plug connection -2-  .
    G15239079Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    Information

    Always replace screws on the seat-belt buckle after customer service and reworking.

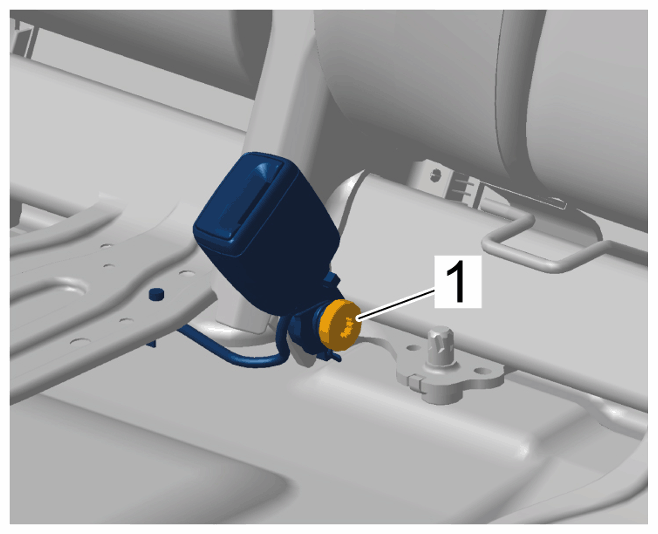

  3. Unscrew screw -1-  and remove outer rear seat-belt buckle.
    G15239080Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw
