Installing Outer Rear Seat-Belt Buckle

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always replace screws on the seat-belt buckle after customer service and reworking.

Installation is performed in reverse order. Pay particular attention to the following:

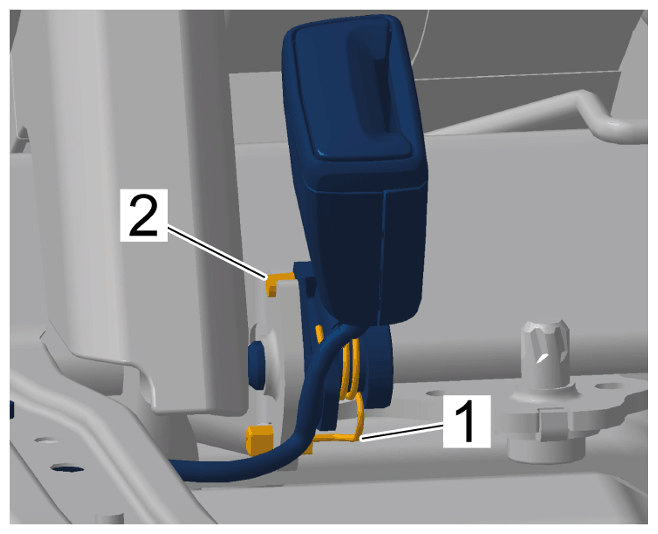

Check that the spring -1- and positioning pin -2- are positioned correctly as shown.

Tighten new screw to > Tightening torque 40 Nm (30 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring
