Removing Rear Seat-Belt Buckle For Middle Seat

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque
    1. Always use new screws or nuts following removal.
    2. Comply with instructions for repairs.
    3. Observe specified tightening torques.
    4. Carry out a visual inspection of parts used.
  1. Release and unplug electric plug connection -1-  .
    G15239073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

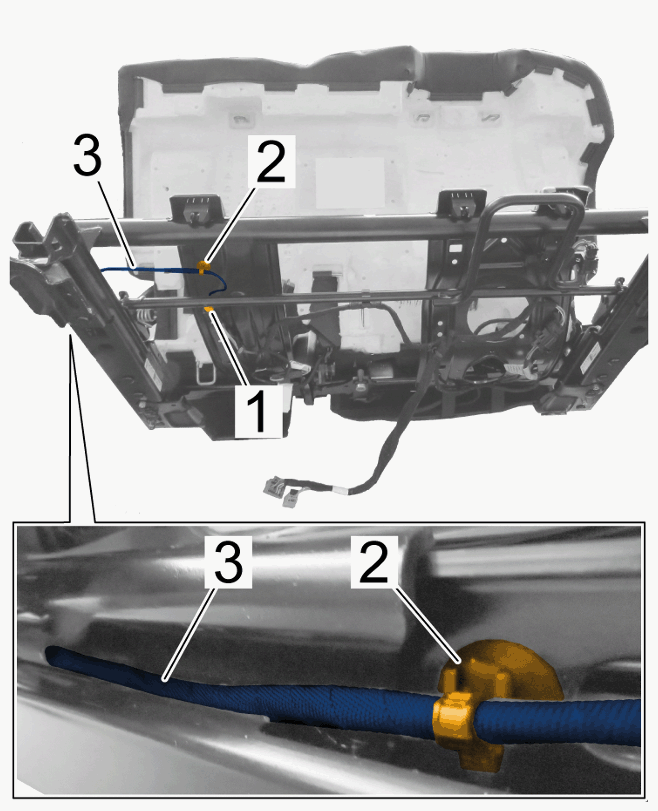

  2. Unclip clips -2-  and guide out electric wire harness -3-  .
    G15239074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

    Information

    Always replace screws on the seat-belt buckle after customer service and reworking.

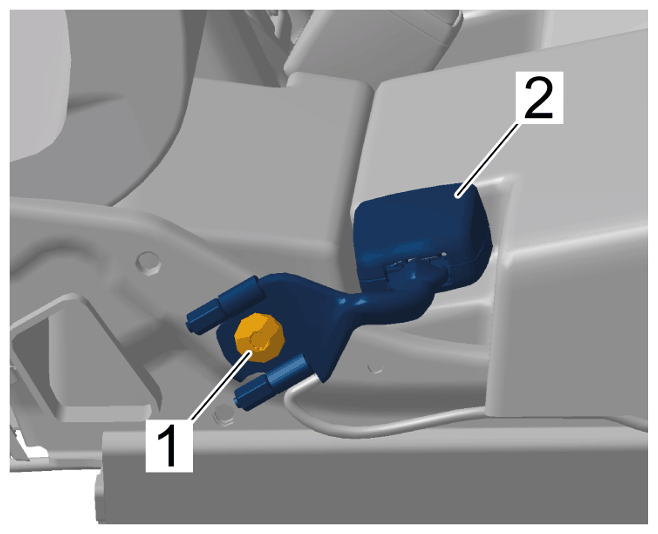

  3. Unscrew screw -1-  and remove rear seat-belt buckle for middle seat -2-  .
    G15239075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear seat-belt buckle for middle seat
