Removing front seat-belt buckle

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque
    1. Always use new screws or nuts following removal.
    2. Comply with instructions for repairs.
    3. Observe specified tightening torques.
    4. Carry out a visual inspection of parts used.
  1. Unclip line bracket at the side -1-  .
    G15239068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket at the side

  2. Release electric plug connection -2-  , disconnect it and guide out electric line.
    G15239069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    Information

    Always replace fastening screws on seat-belt buckle after customer service and reworking.

  3. Unscrew fastening screw -3-  and remove front seat-belt buckle -4-  .

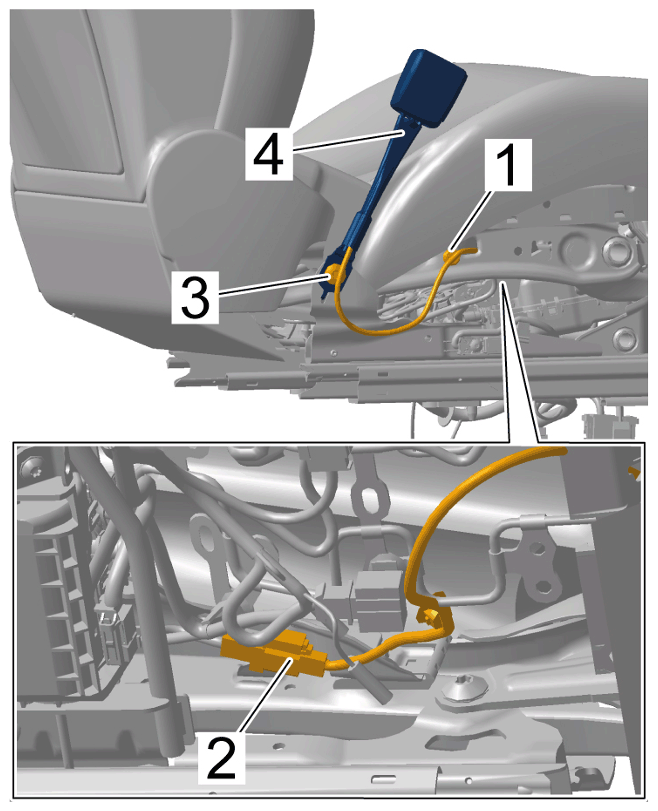

    G15239070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat-belt buckle
