Removing Rear Three-Point Belt

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of seat-belt pretensioner unit
  • Triggering of seat-belt pretensioner unit

    Observe safety regulations for handling seat-belt pretensioner units.

    1. > 6X00IN HANDLING AND REPLACING AIRBAG AND SEAT-BELT PRETENSIONER UNITS

      Observe disposal regulations for seat-belt pretensioner units.

    2. > 6X00IN DISPOSAL OF AIRBAG AND SEAT-BELT PRETENSIONER UNITS
    3. After disconnecting the battery, wait 1 minute before disconnecting the seat-belt pretensioner unit. Remove ignition key and disconnect the battery. Route or insulate the ground strap so that all contact with a ground carrier is avoided.
    4. > Refer to Work instructions after disconnecting the battery in the appropriate service information.
    5. If removed for an extended period, the seat-belt pretensioner unit must be stored in a safe place.
    6. Transport the seat-belt pretensioner unit in such a way that the seat belt can retract safely if it is actuated.
  1. Release and unplug electric plug connection -1-  .

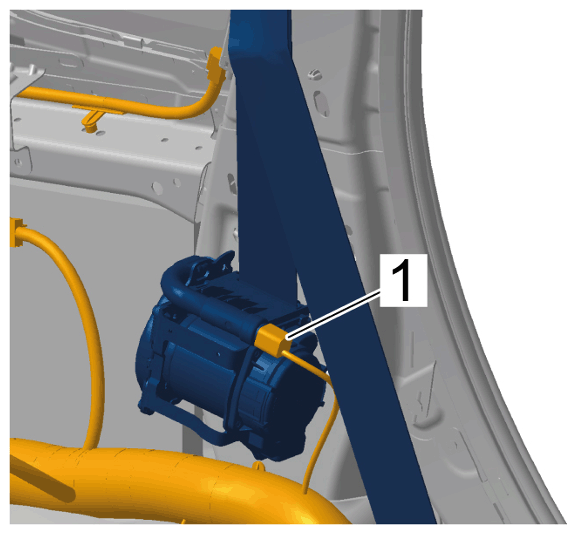

    G15239062Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    Information

    Always replace screws on the three-point seat belt. Micro-self-locking screws must not be treated (greased) or loosened and then screwed on again.

  2. Unscrew fastening screw -2-  and loosen deflection roller.

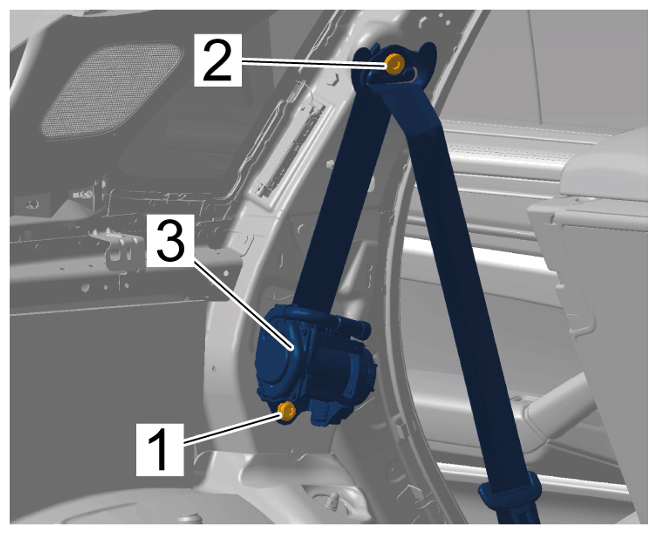

    G15239063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw for deflection roller

    Information

    Always replace screws on the three-point seat belt. Micro-self-locking screws must not be treated (greased) or loosened and then screwed on again.

  3. Unscrew fastening screw -1-  .
    G15239064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw

  4. Remove rear three-point belt.
    G15239065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear three-point belt
