Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Nut on belt retractor for seat belt on middle seat to seat frame   Tightening torque 40 Nm (30 ftlb.)

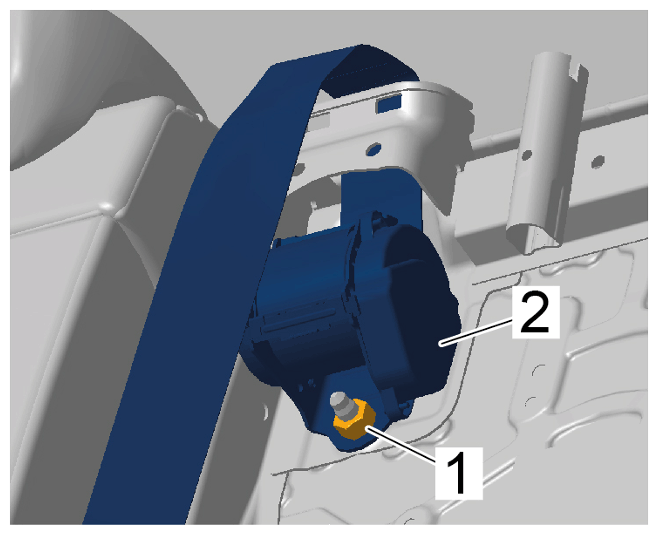

G15239052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on belt retractor for rear three-point belt on middle seat
