Removing Rear Three-Point Belt For Middle Seat

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque
    1. Always use new screws or nuts following removal.
    2. Comply with instructions for repairs.
    3. Observe specified tightening torques.
    4. Carry out a visual inspection of parts used.

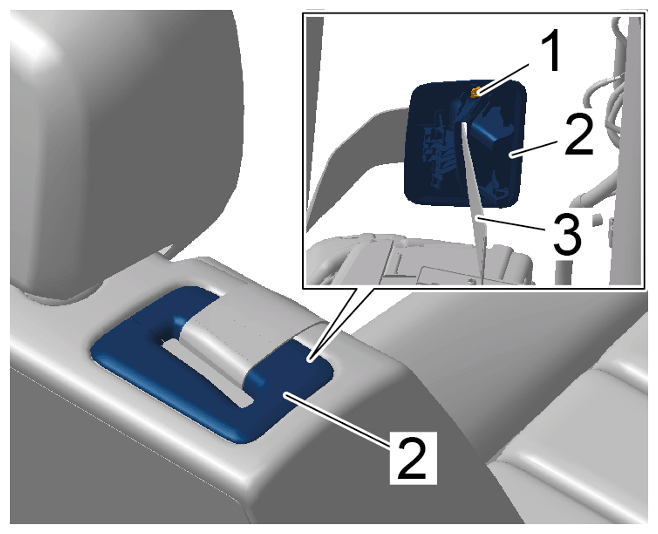

  1. Release locking lug -1-  and remove belt feed-through element -2-  from rear three-point belt for middle seat -3-  .
    G15239055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Belt feed-through element

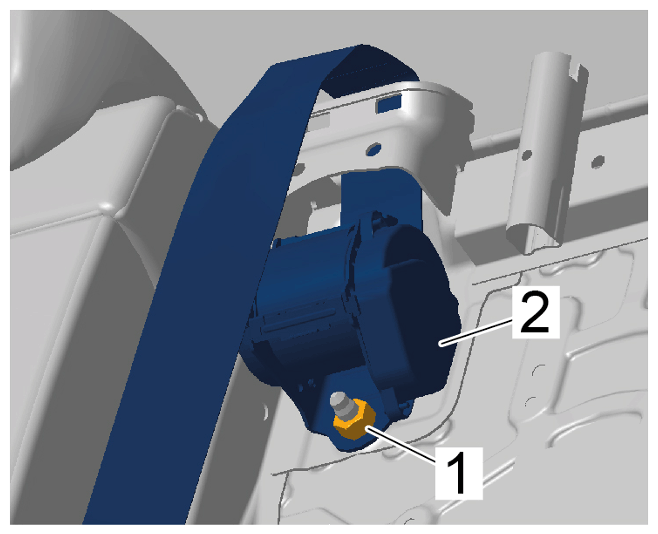

  2. Screw off fastening nut -1-  .
    G15239056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nut on belt retractor

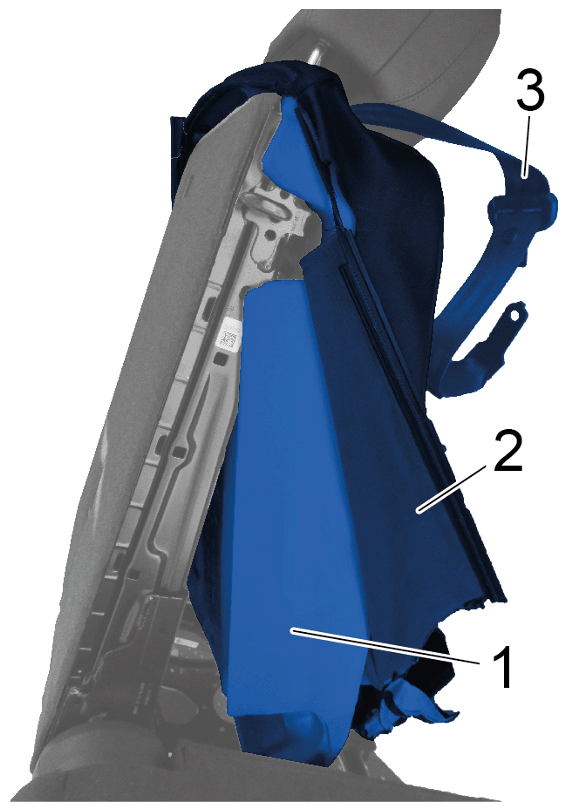

  3. Feed rear three-point belt for middle seat -3-  through the rear backrest cover (2/3-split folding rear seat) -2-  , padding for rear backrest (2/3-split folding rear seat) -1-  and backrest frame.
    G15239057Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear three-point belt for middle seat

  4. Remove rear three-point belt for middle seat -2-  under the padding for rear backrest (2/3-split folding rear seat).
    G15239058Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Belt retractor for three-point belt
