Removing Front Three-Point Belt

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of seat-belt pretensioner unit
  • Triggering of seat-belt pretensioner unit

    Observe safety regulations for handling seat-belt pretensioner units.

    1. > 6X00IN HANDLING AND REPLACING AIRBAG AND SEAT-BELT PRETENSIONER UNITS

      Observe disposal regulations for seat-belt pretensioner units.

    2. > 6X00IN DISPOSAL OF AIRBAG AND SEAT-BELT PRETENSIONER UNITS
    3. After disconnecting the battery, wait 1 minute before disconnecting the seat-belt pretensioner unit. Remove ignition key and disconnect the battery. Route or insulate the ground strap so that all contact with a ground carrier is avoided.
    4. > Refer to Work instructions after disconnecting the battery in the appropriate service information.
    5. If removed for an extended period, the seat-belt pretensioner unit must be stored in a safe place.
    6. Transport the seat-belt pretensioner unit in such a way that the seat belt can retract safely if it is actuated.
  1. Move driver's seat and passenger's seat fully forward and up.
  2. Loosen battery ground strap.

    > WM, 978509 - LOOSENING AND SECURING GROUND STRAP FOR BATTERY

    Information

    Always replace screws on the three-point seat belt. Micro-self-locking screws must not be treated (greased) or loosened and then screwed on again.

  3. Remove front three-point belt.
    1. 3.1 Release and unplug electric plug connections -1-  .

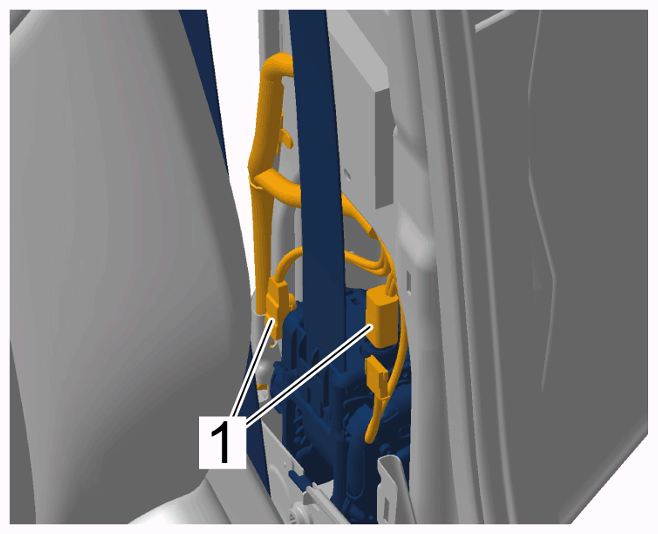

      G15239046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connections

    2. 3.2 Unscrew fastening screw -1-  and loosen seat belt mount.
      G15239047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screw

    3. 3.3 Disengage belt guide -1-  .

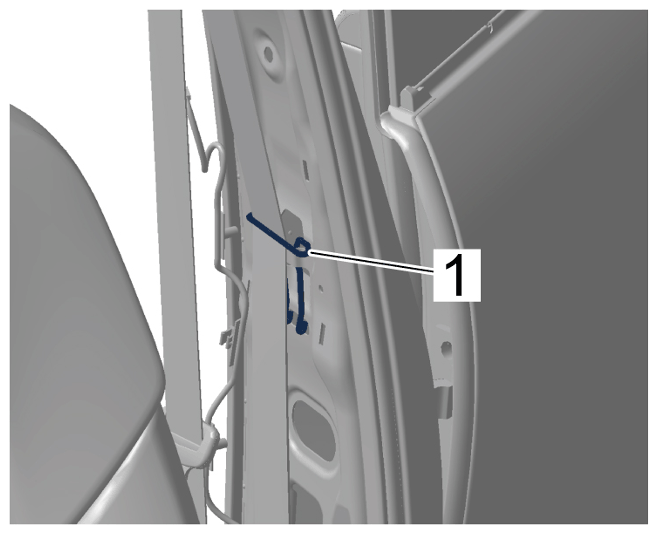

      G15239048Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Seat-belt guide

    4. 3.4 Unscrew fastening screw -2-  and remove belt deflector.
      G15239049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screw

    5. 3.5 Unscrew fastening screw -3-  .
      G15239050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screw

    6. 3.6 Remove three-point seat belt -4-  .

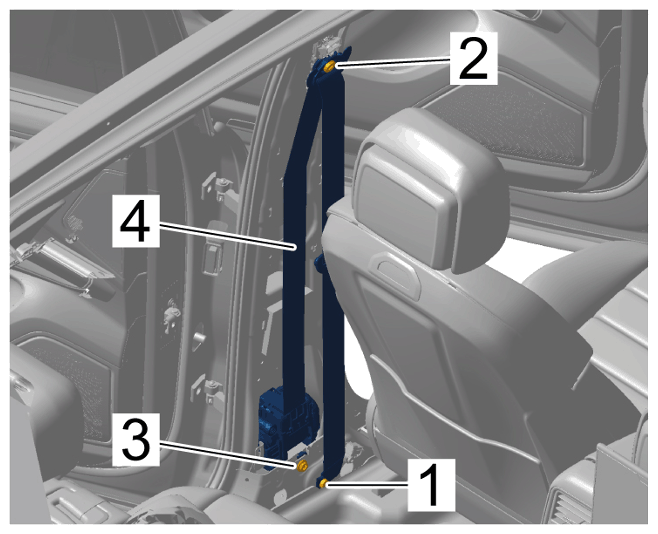

    G15239051Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Three-point seat belt
