Removing Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

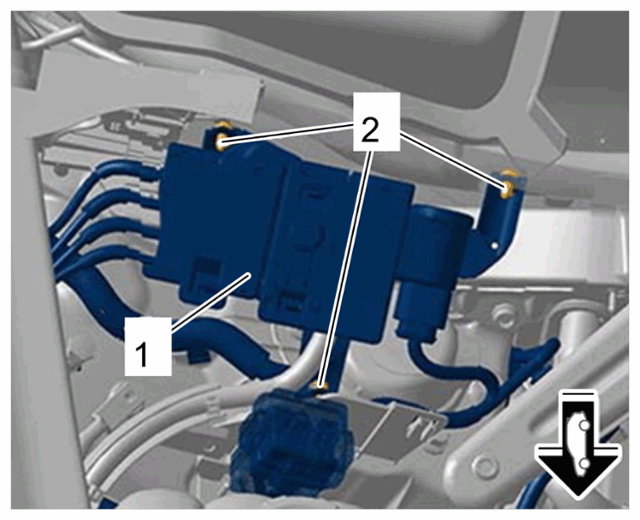

Housing for external power connection

1. 1.1 Unscrew nuts -2-  .
2. 1.2 Move housing for external power connection -1-  aside.

Information

The number of electric plug connections can vary depending on equipment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

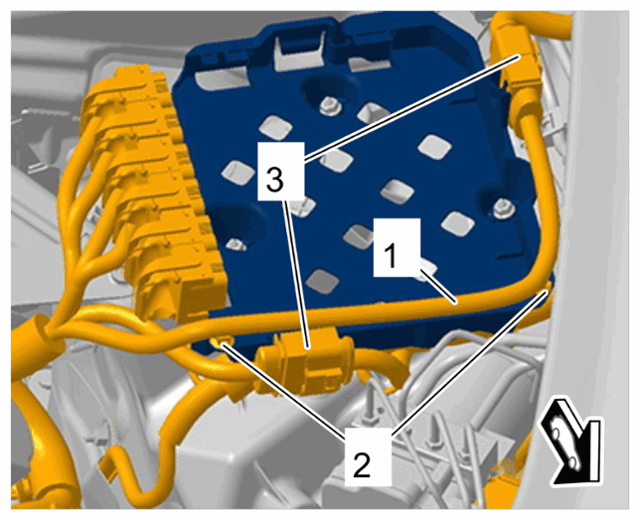

Electric wire harnesses on DME control unit holder

1. 2.1 Unclip clips -2-  .
2. 2.2 Disconnect electric plug connections -3-  from DME control unit holder.
   1. 2.2.1 Release locks on the DME control unit holder and disconnect electric plug connections -3-  by pulling them upwards.
3. Remove DME control unit holder -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

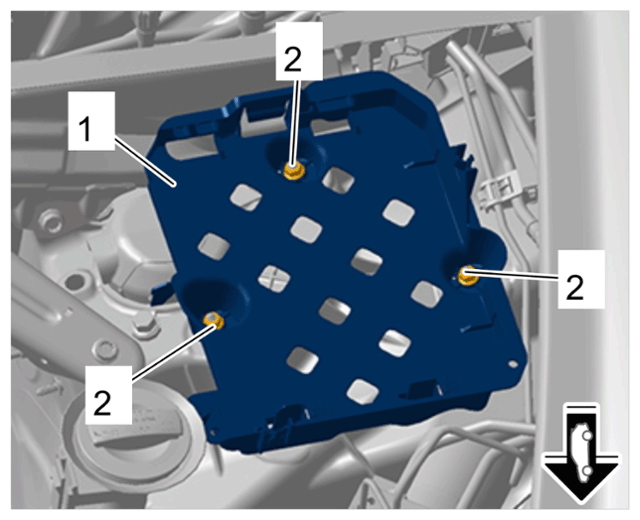

   DME control unit holder

   1. 3.1 Unscrew nuts -2-  .
   2. 3.2 Remove DME control unit holder -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holders for air cleaner housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

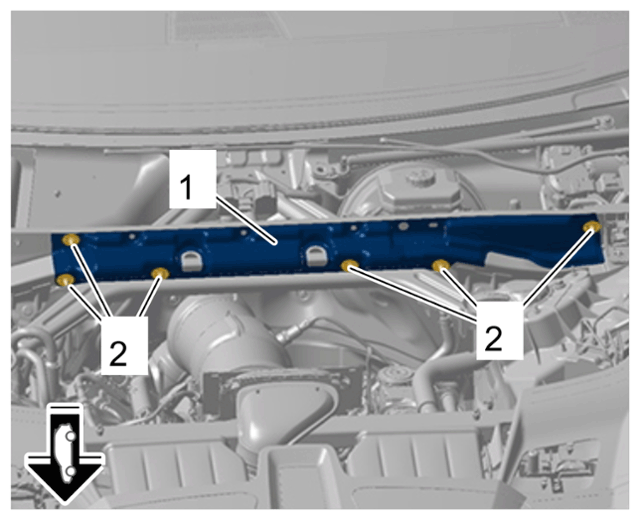

Sound absorber

1. 5.1 Remove fastening elements -2-  and remove sound absorber -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

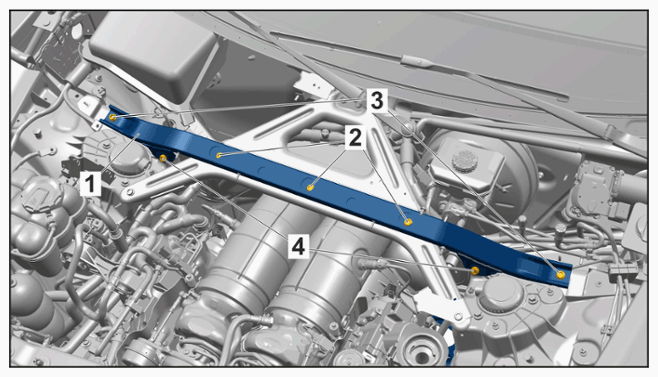

Threaded joint for strut (dome strut)

1. 6.1 Unscrew screws -2 to 4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

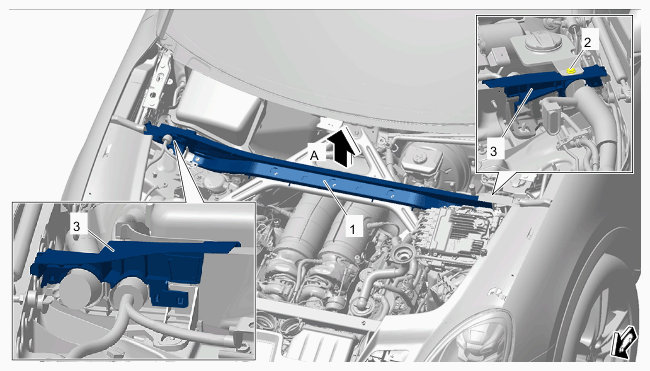

Strut (dome strut)

1. 7.1 Unclip clip -2-  and carefully set the washer fluid filler neck aside.
2. 7.2 Unclip upper parts of covers -3-  and remove by pulling upwards.
3. 7.3 Remove strut -1-  in -Arrow direction A-  .
