Installing Strut

  1. Install strut -1-  .

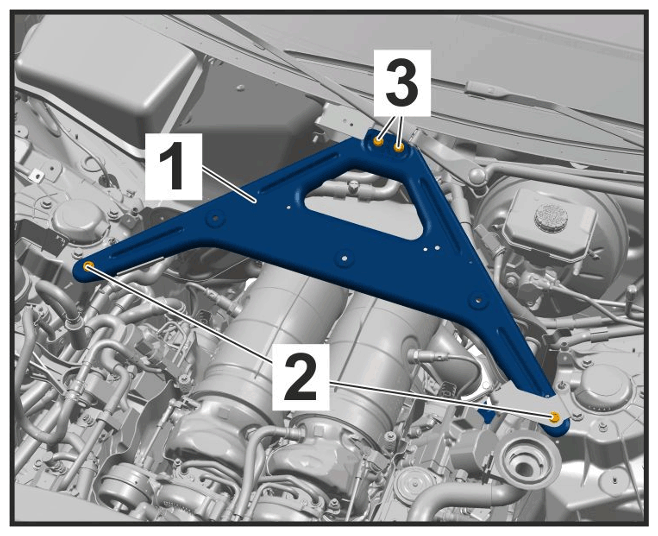

    G15291810Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut (A-strut)

    1. 1.1 Position strut -1-  .
    2. 1.2 Fit screws -2 and 3-  .
    3. 1.3 Tighten screws -2-  .

      > Tightening torque 25 Nm (18.4 ftlb.)

    4. 1.4 Tighten screws -3-  .

    > Tightening torque 25 Nm (18.4 ftlb.)
