Removing Spring Strut

Information

Upper trailing arms are disconnected after removing the shock absorber fork from the wheel bearing housing.

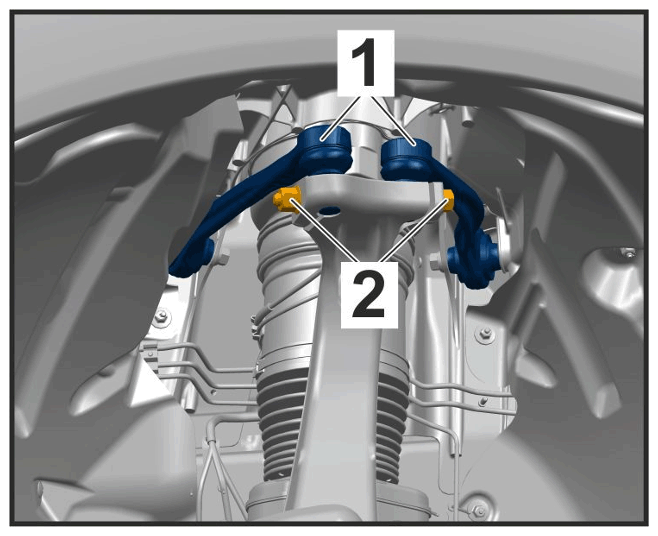

1. Fit screws for upper trailing arm -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for upper trailing arm

   1. 1.1 Raise the lifting equipment.
   2. 1.2 Guide pins for upper trailing arms -1-  into the wheel bearing housing.
   3. 1.3 Insert screw -2-  and screw on nut by several turns.

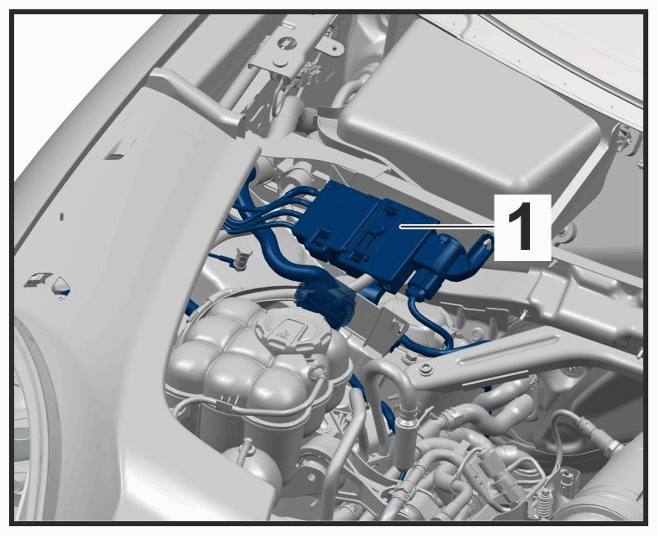

2. Expose external power connection -1-  as much as required until the screws for the air-spring strut are accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   External power connection

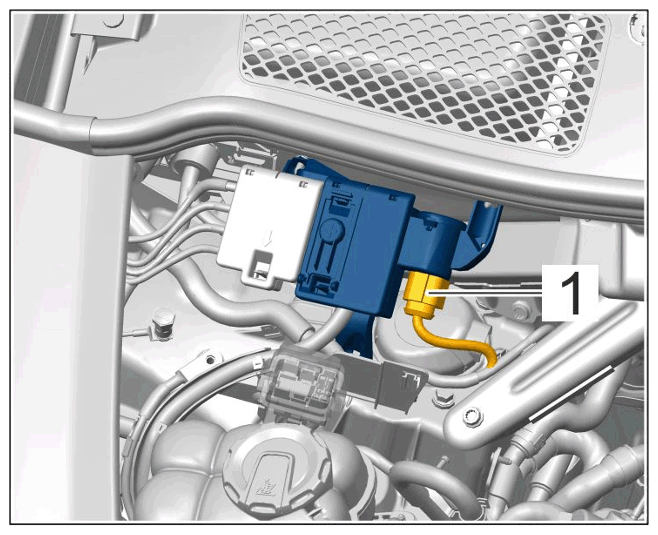

   1. 2.1 Release and unplug electric plug connection -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection

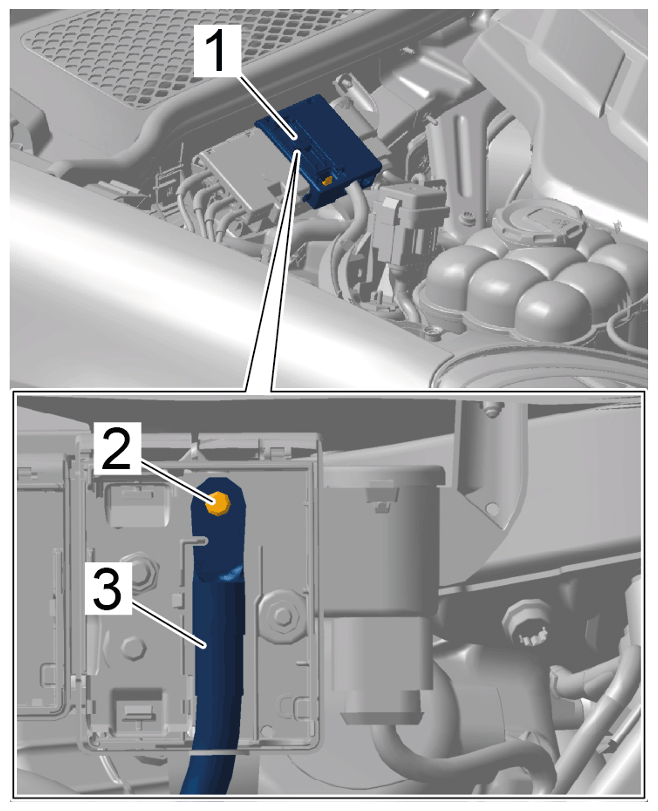

   2. 2.2 Open cover on external power connection -1-  .
   3. 2.3 Unscrew fastening nut -2-  and remove wire harness from battery to starter -3-  from external power connection.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Wire harness from battery to starter

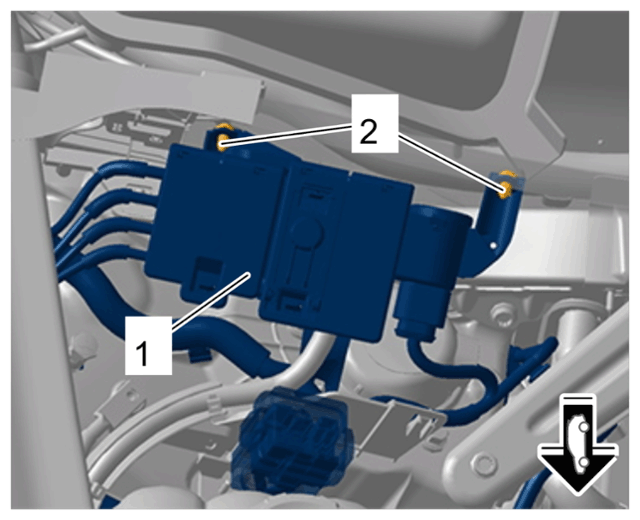

   4. 2.4 Remove housing for external power connection and set it aside.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Housing for external power connection

      1. 2.4.1 Unscrew and remove screws -2-  .

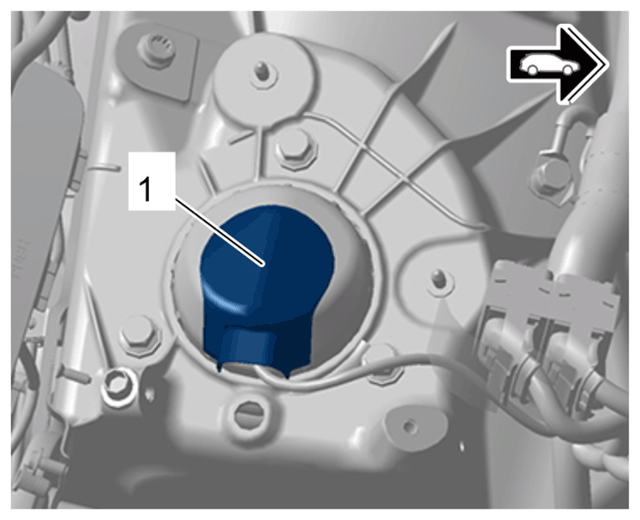

3. Remove cap -1-  on electric plug connection for front spring strut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on electric plug connection

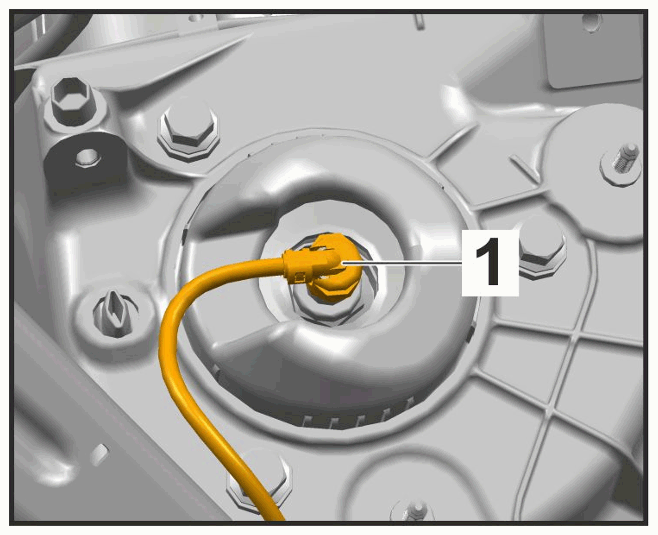

4. Release and disconnect electric plug connection for spring strut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on spring strut

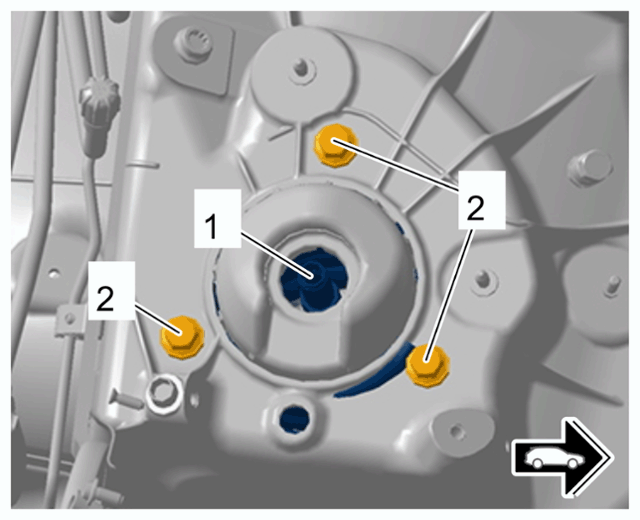

5. Remove front spring strut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front spring strut on body

   1. 5.1 Get another person to help by holding the spring strut -1-  .
   2. 5.2 Unscrew and remove screws -2-  .

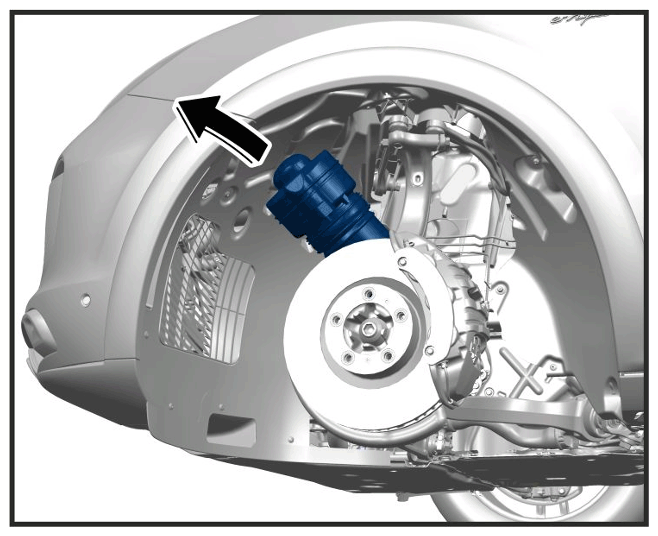

   3. 5.3 Remove spring strut -1-  by pulling it forward -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front spring strut
