Installing Spring Strut

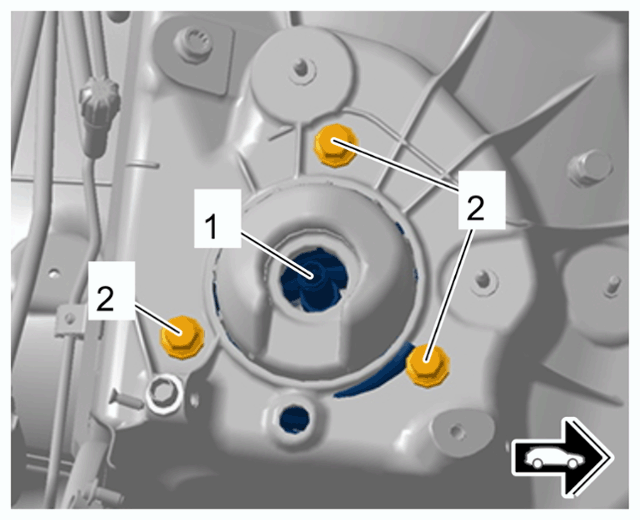

1. 1.1 New screws  securing spring strut to body -2-  :

   > Initial tightening 20 Nm (15 ftlb.)

   > Final tightening + 90°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front spring strut on body

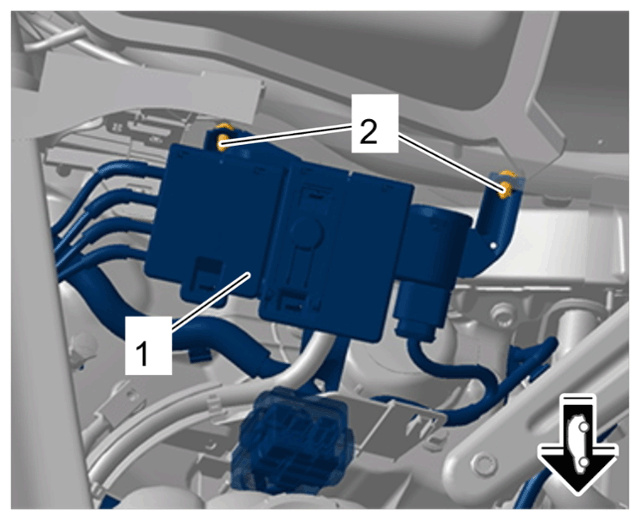

2. 1.2 Housing for external power connection -1-  to body > Tightening torque 3 Nm (2 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Housing for external power connection

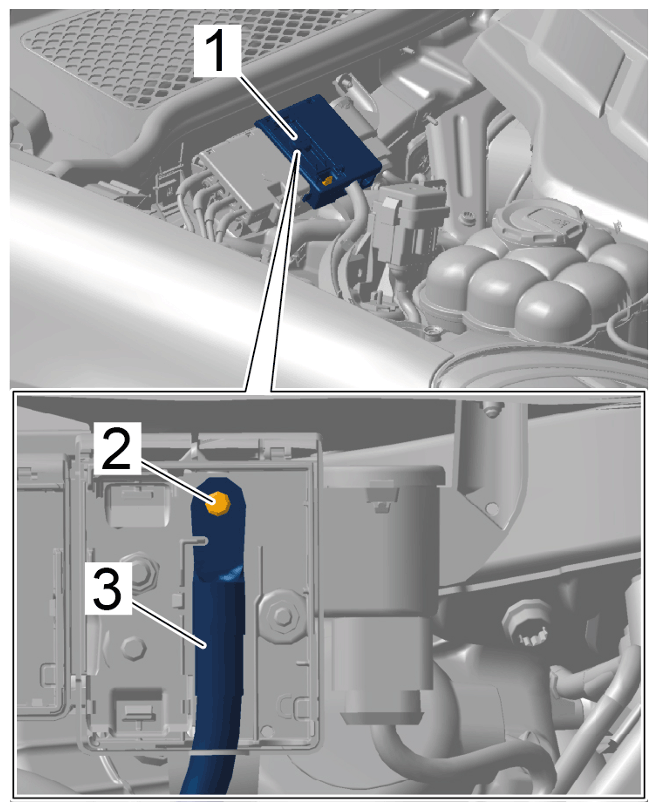

3. 1.3 Wire harness from battery to starter -3-  to external power connection > Tightening torque 20 Nm (14.8 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness from battery to starter
