Subsequent Work

Install front speed sensor
> 451119 REMOVING AND INSTALLING FRONT SPEED SENSOR
Secure upper trailing arms -1 and 2- . > Tightening torque 40 Nm (30 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

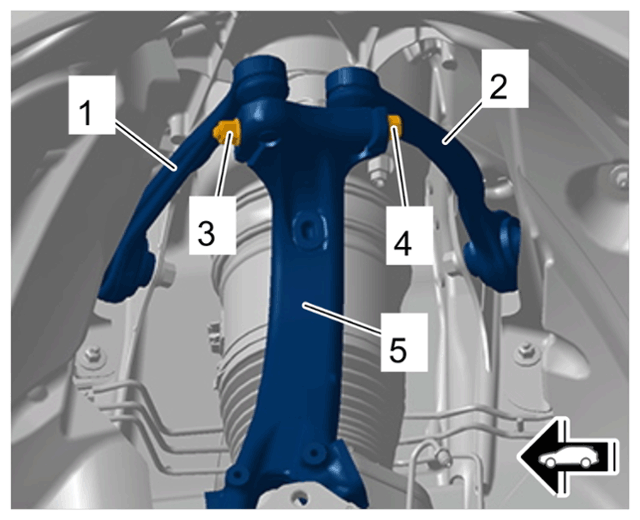

Upper trailing arms on wheel bearing housing
1. 2.1 Guide both trailing arms -1 and 2- into the openings on the wheel bearing housing -5- .
2. 2.2 Guide screw -4- into wheel bearing housing -5- .
3. 2.3 Tighten nut -3- and counter at screw -4- .
Install brake disc
> 465019 REMOVING AND INSTALLING FRONT BRAKE DISC
Fit screw on drive shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

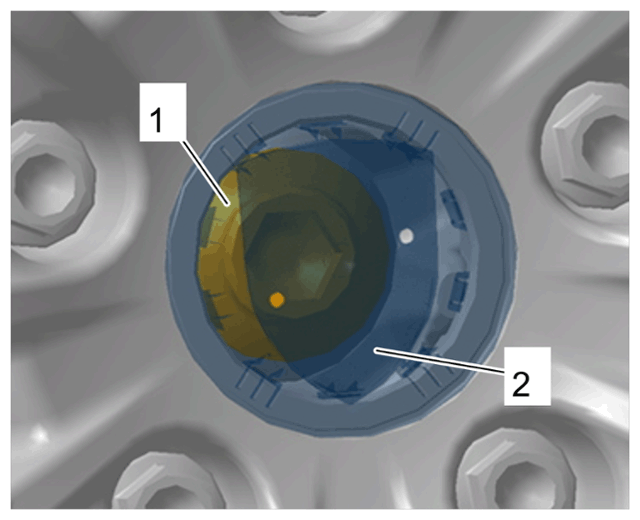

Drive shaft screw
1. 4.1 Replace screw for drive shaft -1- .
2. 4.2 Screw in and tighten new screw on drive shaft -1- .
  > Initial tightening 200 Nm (148 ftlb.)

  > Final tightening + 180°
3. 4.3 Fit hub cap -2- .
