Preliminary Work

  1. Loosen drive shaft from wheel hub -1-  .

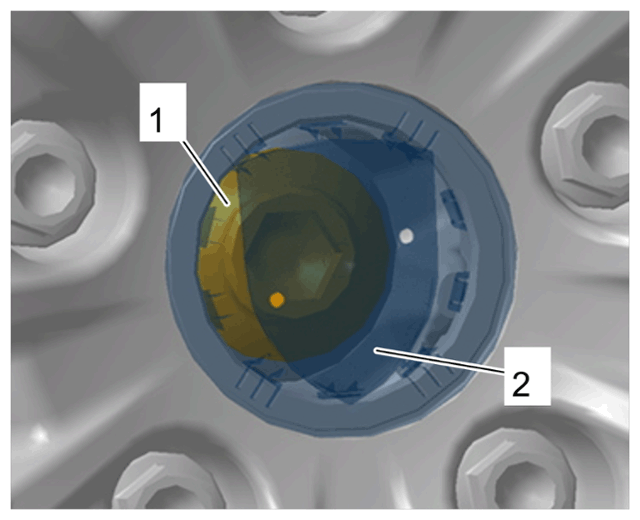

    G15291688Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 1.1 Pull off hub cap -2-  .
    2. 1.2 Loosen screw on drive shaft -1-  .
    3. 1.3 Lift the vehicle.
    4. 1.4 Unscrew drive shaft screw -1-  .
  2. Remove lower trailing arm.

    > 401719 REMOVING AND REINSTALLING LOWER TRAILING ARM
