Removing Lower Axle Joint

  1. Remove lower axle joint -1-  .

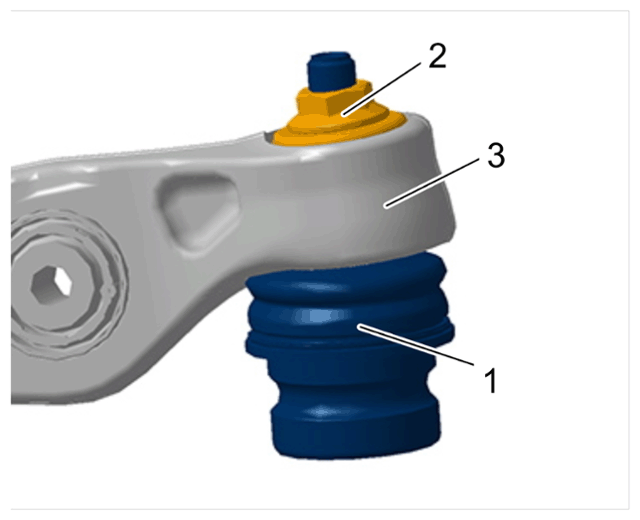

    G15291683Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower axle joint

    1. 1.1 Unscrew nut on lower axle joint -2-  .
    2. 1.2 Press off lower axle joint -1-  using > T10187 - ball joint puller  and remove it from the wheel bearing housing -3-  .
