Front-Axle Support (Without Pdcc)

  1. Remove front-axle support -1-  .

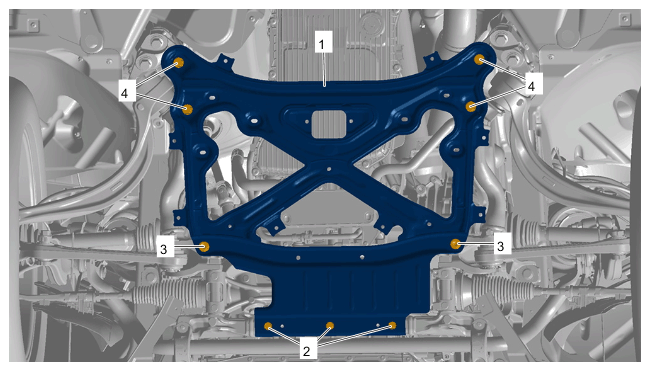

    Fig 1: Front-Axle Support Screws Loosening Sequence (Without PDCC)
    G15291656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front-axle support (without PDCC)

    1. 1.1 Unscrew screws -2 to 4-  and remove front-axle support -1-  .
