Removing Actuator For Parking Brake

  1. Unscrew screws -1-  .

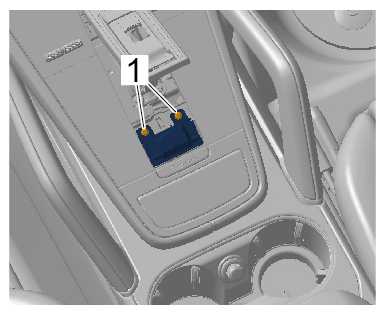

    G15292453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw on parking brake actuator

  2. Remove parking brake actuator -1-  .

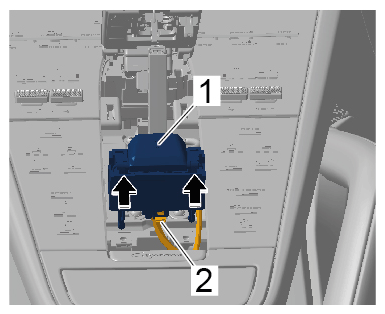

    G15292454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Parking brake actuator

    1. 2.1  Pull parking brake actuator -1-  up out of retaining clips -Arrows-  .
    2. 2.2  Release electric plug connection -2-  and disconnect it.
    3. 2.3  Remove parking brake actuator
