Removing Brake Disc Rear

NOTIFICATION

Removal of brake calliper

• Paint defects on brake calliper
  1. → Proceed with care when setting back the brake pads.
  2. → Protect the paintwork on the brake calliper from damage using a suitable cloth.

1. Select brake pad change mode using PIWIS Tester.
   1. 1.1  Select → 'Brake electronics (PSM, incl. parking brake)' in the 'Control unit overview' and press F12 to confirm your selection.
   2. 1.2  Select 'Drive links/checks  ' → 'Start brake pad change mode  ' and start the procedure.
2. Removing the brake disc.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

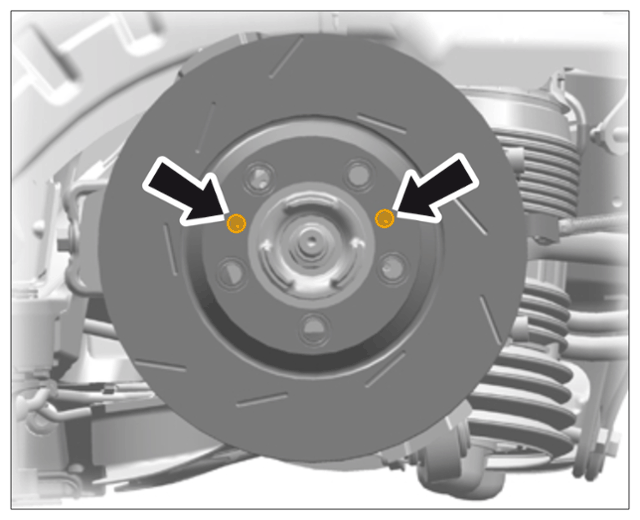

   Brake disc rear

   1. 2.1  Unscrew screws on brake disc -Arrows-  .
   2. 2.2  Removing brake disc.
