Checking Front PCCB Brake Discs (Wear Assessment)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measurement markings with new friction coating technology

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Markings and values (new value/wear value)

Information

• The brake disc temperature must be in the range between 0°C and 40°C during the measurement.
• Check tester before taking measurements and calibrate it if necessary. Follow the operating instructions provided by the equipment manufacturer.
• important for quick measurement: A metallic heat shield will lower the measured value.

Information

• The remaining service life of the brake disc can be estimated using the previously stored data and measured values recorded during service intervals/workshop visits based on the mileage.
• The value is reduced by approx. 2 to 5 units per brake pad set (depending on the axle and brake pad) - not valid for race track use and if brake pads not approved by Porsche are used.
• Carry out wear assessment on the brake discs and check the condition of the brake pads before and after every race track use (component temperatures are significantly higher than temperatures during "normal" driving).

Information

When taking measurements, the tester must be positioned over the entire surface of the brake disc with the roller stops and the underside of the device -arrows-  .

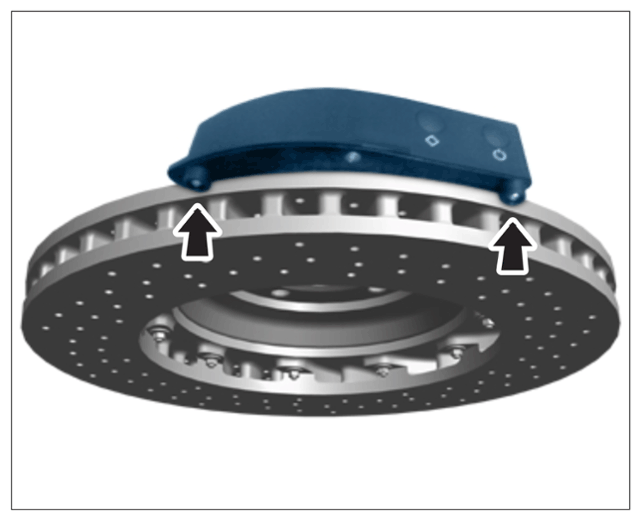

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measuring procedure/tester (roller stops)

Information

Once removed, the brake calliper must not be placed closer than 50 millimeters from the back of the brake disc (see operating instructions supplied with the measuring equipment).

1. Use > VAS 6813 - Tester for PCCB brake discs  to check the wear condition. A differentiation is made bet vetn a quick measurement (See "1.1 Quick measurement:" below)  and an exact measurement (See 1.2 "Exact measurement:" below)  .
   1. 1.1 Quick measurement:  Brake calliper fitted (with or without whee).

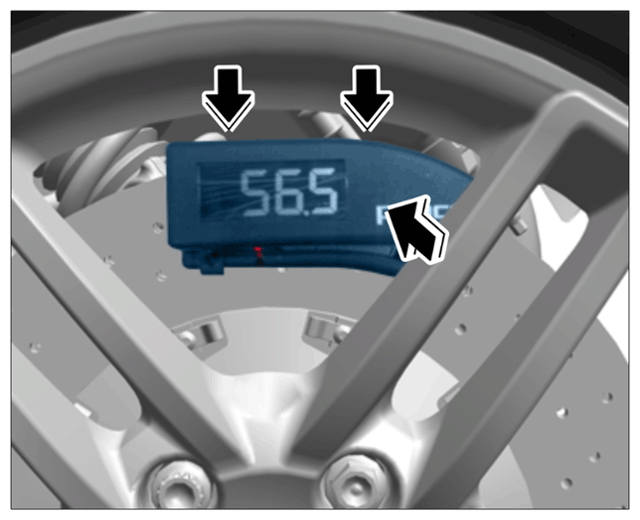

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Quick measurement with wheel

      1. 1.1.1  Align laser beam -2-  with the measurement marking on the brake disc hub.

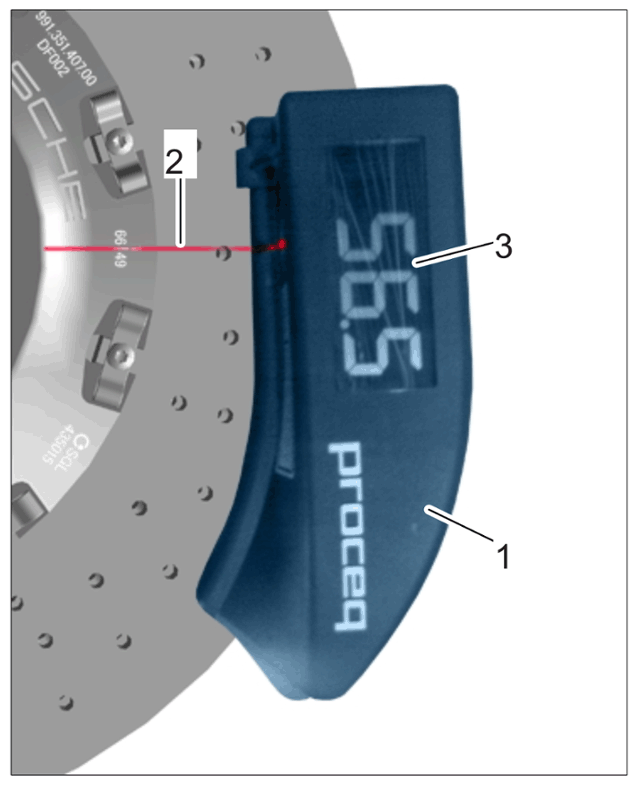

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.

         Tester on brake disc

      2. 1.1.2  Compare the values you read off with the wear value -3-  .

         If the wear value -3-  is reached or if the measured value is less than the wear value at a measuring point, perform an exact measurement (See Below)  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Markings and values

   2. 1.2 Exact measurement:  Wheel and brake calliper removed.
      1. 1.2.1  Remove front brake calliper.

         > 473919 REMOVING AND REINSTALLING FRONT BRAKE CALLIPER

      2. 1.2.2  Align laser beam -2-  with the measurement marking on the brake disc hub.

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.

         Tester on brake disc

      3. 1.2.3  Compare the values you read off with the wear value -3-  .

         Courtesy of PORSCHE CARS NORTH AMERICA, INC.

         Markings and values

      4. 1.2.4  If the wear value -3-  is reached or if the measured value is less than the wear value at a measuring point, replace front brake discs.

   > 465119 REMOVING AND INSTALLING FRONT BRAKE DISC (PCCB)

   NOTIFICATION

   Work must not be carried out on the bores in the brake disc friction surface

   • Risk of damage to brake discs
   • → Clean the bores on PCCB brake discs with high-pressure cleaning equipment if necessary. Observe the relevant environmental and safety regulations.
   • → Do not machine the bores. Drilling or counter-sinking is not permitted.
2. Visual inspection of the brake disc friction surfaces for surface changes.
   1. 2.1  Check for build-up on brake disc friction surface.

      If there is a build-up on the pad, also check the following points:

      • Check ventilation (brake cooling): All components are present, secured correctly and undamaged. Carry out repairs if necessary.
      • Check brake pad quality: If the vehicle is used for race track driving, use appropriate brake pads.
      • The perforation bores in the brake discs must not be blocked. Clear them if necessary.
   2. 2.2  Check brake disc for flaking/fractures as a result of unusual usage conditions (e.g. stone chip damage). Flaking/fractures are only permitted up to a size of > Area 1 cm ²  !
   3. 2.3  If specified values are exceeded, replace the affected front brake disc.

      > 465119 REMOVING AND INSTALLING FRONT BRAKE DISC (PCCB)

   Information

   • If there is edge damage on the brake disc friction surfaces, only replace the affected brake disc.

   > 465119 REMOVING AND INSTALLING FRONT BRAKE DISC (PCCB)

3. Check brake discs for edge damage > Edge damage on PCCB brake disc.

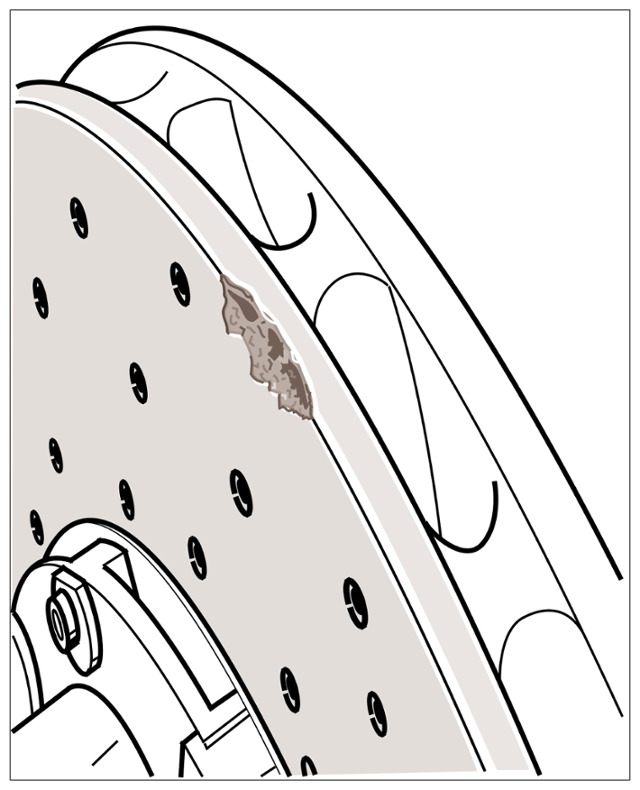

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Edge damage on PCCB brake disc

   • Maximum permitted width/depth > Width/depth 2 mm
   • Maximum permitted length > Length 10 mm
   • Max. 3 damaged edges permitted
