Preliminary Work

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

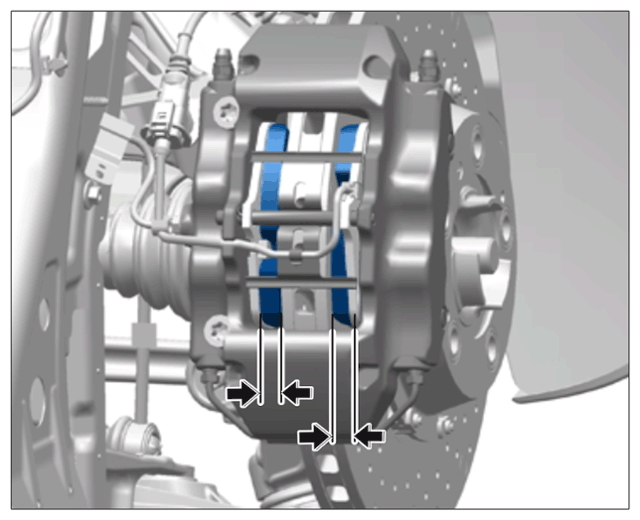

Checking brake pad thickness (shown as an example)

• If brake pad wear is indicated by the warning light, the warning contact line must also be replaced.
• Replacement of the warning contact can be avoided by replacing the brake pads before a pad thickness -Arrows- of 2.5 mm is reached.
• Warning contacts must be replaced if the core of the wire is worn.
• If only the plastic part of the warning contact is worn, the warning contacts need not be replaced.

1. Carefully pull off warning contact -1-  on the brake pad -2-  and then disconnect the cable plug -3-  at the plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

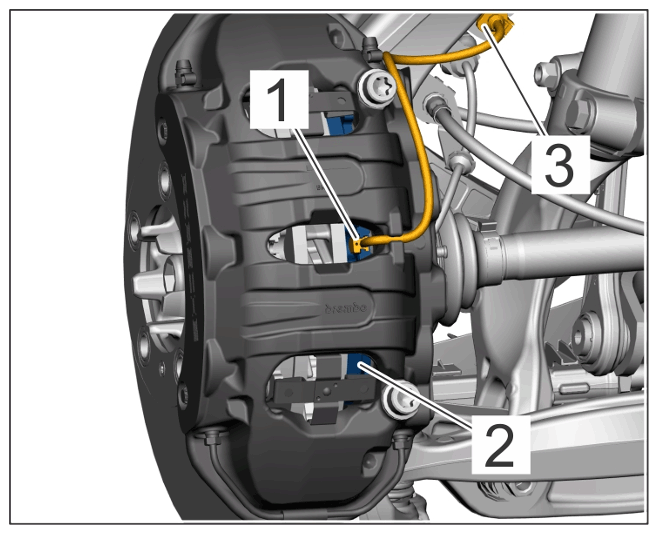

   Brake pad warning contact (example)

2. Loosen both brake callipers front. Do not disconnect the brake pipe from the brake callipers.

   > 473919 REMOVING AND INSTALLING BRAKE CALLIPER FRONT - on "Removing"
