Checking Thickness Of Brake Pads

WARNING: Installation of brake pads with the wrong brake pad quality

Longer braking distance
More wear on brake pads
1. → Only use the type-specific brake pads listed in the Porsche Parts Information.
2. → Replace the brake pads when the brake pad wear indicator light comes on, but no later than when there is a residual pad thickness of 2 mm on each axle.
3. → Replace the brake discs on each axle upon reaching the wear limits.

Information

G15292297

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

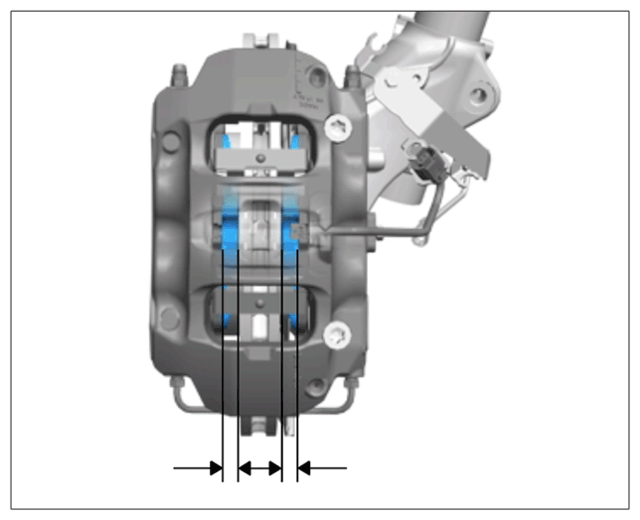

Thickness of brake pads

If brake pad wear is indicated by the warning light, the warning contact (sender including line and plug connection) must be replaced.
Replacement of the warning contact can be avoided by replacing the brake pads no later than when the pad thickness is 2.5 mm -Arrows- .
Warning contacts must be replaced if the core of the wire is worn.
However, if only the plastic part of the warning contact is worn, there is no need to replace it.

Raise the vehicle.
> Raising the vehicle
Remove wheel. Use assembly aids (assembly pins) -1- .
> 440519 REMOVING AND INSTALLING WHEEL - on "Removing"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly aids (threaded bolts for fitting wheel)
Visually check the brake pads for wear.
