Removing Brake Pedal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

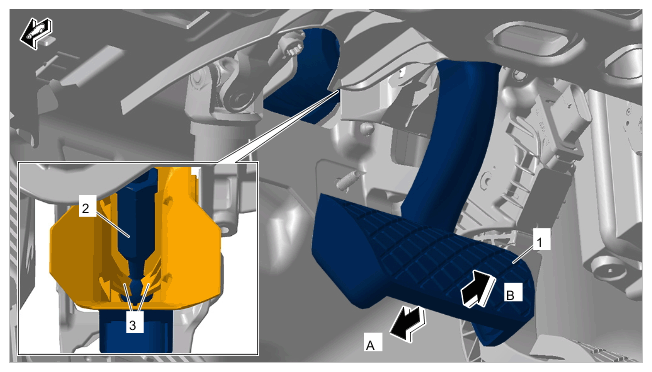

Push rod on brake pedal

1. 1.1  Press the brake pedal -1-  towards the brake booster with your hand. -arrow A-
2. 1.2  > T40136 - Release tool  must be positioned at the retaining lugs -3-  of the ball joint mounting.
3. 1.3  Release retaining lugs -3-  using > T40136 - release tool  and counter at the brake pedal -1-  .
4. 1.4  Pull brake pedal -1-  together with > T40136 - release tool  away from the push rod -2-arrow B-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

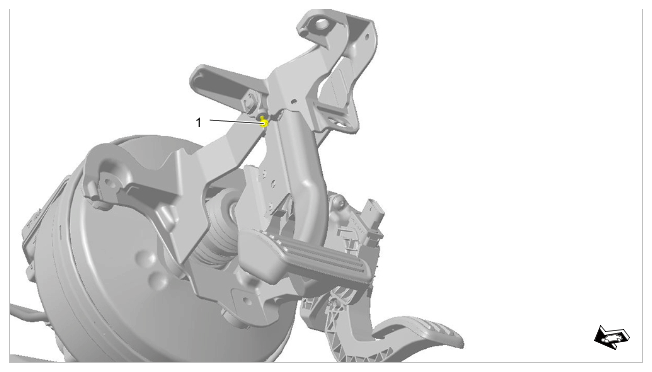

Screw for brake pedal mounting saddle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

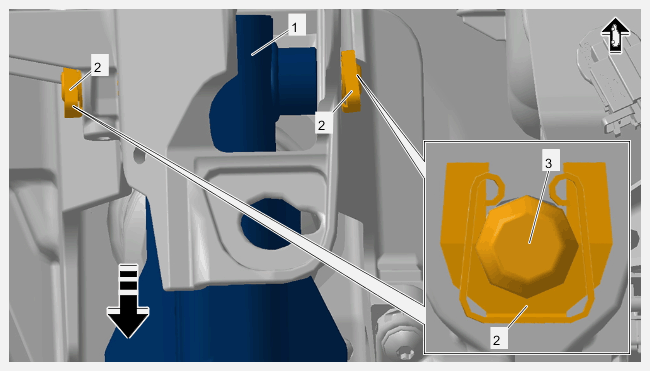

Brake pad removal

1. 3.1  Pull safety clips -2-  off the bolts -3-  .
2. 3.2  Remove bolts -3-  from mounting saddle and remove brake pedal -1-  by pulling it down out of the mounting saddle -Arrow-  .
