Installing Brake Pedal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

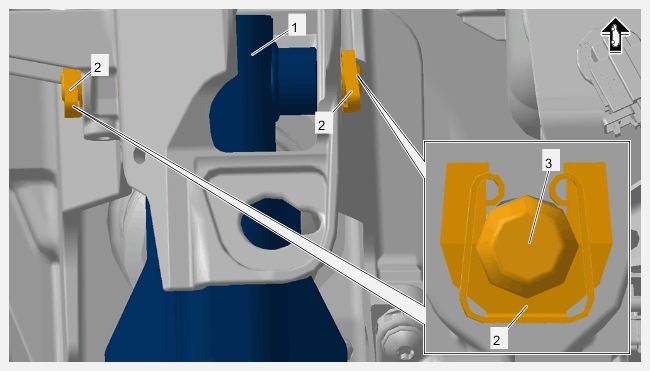

Brake pedal

1. 1.1  Insert brake pedal -1-  into the mounting saddle.
2. 1.2  Insert bolts -3-  into the mounting saddle and brake pedal -1-  .
3. 1.3  Push on safety clips -2-  on bolts -3-  and check that the safety clips -2-  are seated correctly.

> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

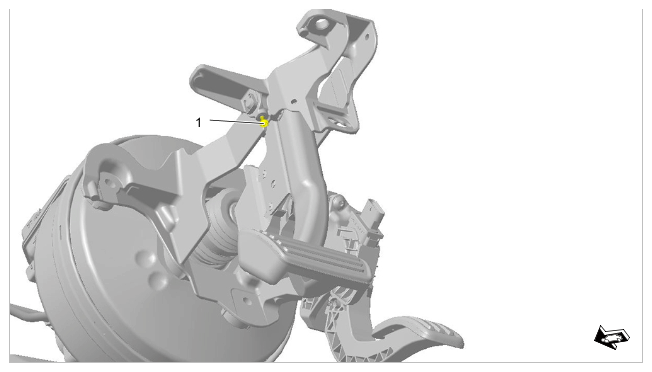

Screw for brake pedal mounting saddle
