Subsequent Work

CAUTION: Danger of material damage if specified curing time of adhesive is not observed! In order to ensure that the bonded joint is sufficiently strong, the following boundary conditions must be adhered to:

The vehicle must not be used until the curing time has elapsed.
Curing time: 2 hours
Temperature: at least 10°C
Fixing time: approx. 1 hour

Plug in electric lines.

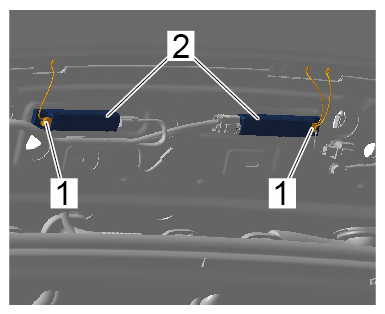

1.1 Plug in electric plug connections -1- for antennas -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for antennas

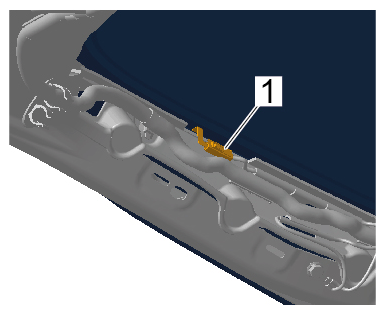

1.2 Plug in electric plug connections -1- for rear window heating on both sides.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for rear window heating, right

Install rear spoiler.
- > 665819 REMOVING AND INSTALLING REAR SPOILER
Install wiper motor for rear window washer.
- > 923419 REMOVING AND INSTALLING WIPER MOTOR FOR REAR WINDOW WASHER
Install trim panel for rear lid.
- > 708719 REMOVING AND INSTALLING TRIM PANEL FOR REAR LID
