Subsequent Work

Plug in electric line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

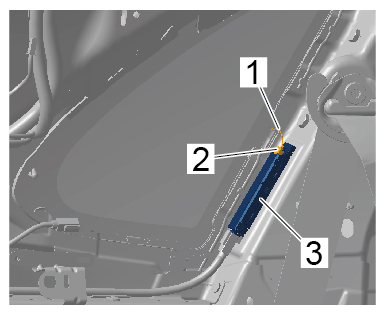

Electric line
1. 1.1 Pull adhesive tape off rear side window and remove adhesive residue.
2. 1.2 Plug electric plug connection -2- into antenna -3- .
Install D-pillar trim panel.
- > 706919 REMOVING AND INSTALLING D-PILLAR TRIM PANEL
Install C-pillar trim panel (upper part).
- > 706819 REMOVING AND INSTALLING C-PILLAR TRIM PANEL
