Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing power window motor to rear power window mechanism Item 2 Tightening torque 3.5 Nm (2.6 ftlb.)

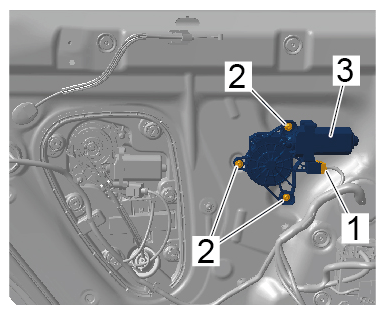

G15237383Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear power window motor
