Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing power window motor to power window mechanism Item 4 Tightening torque 3.5 Nm (2.6 ftlb.)

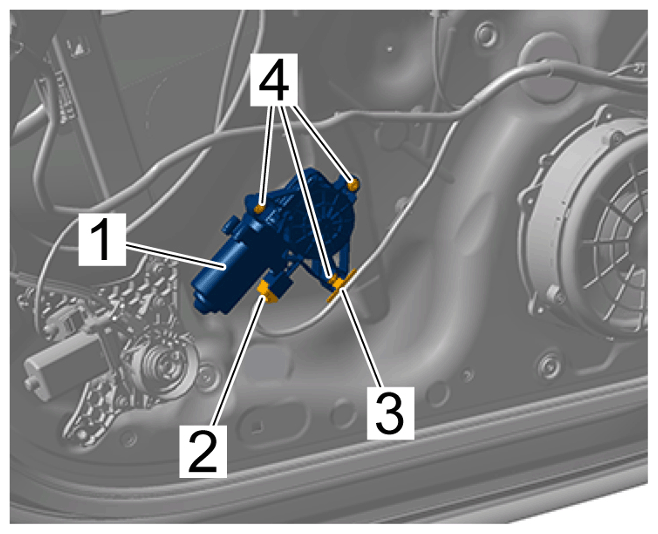

G15237373Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power window motor
